Within the mid-18th century, Benjamin Franklin helped elucidate the character of lightning and endorsed the protecting worth of lightning rods. And but, 100 years later, a lot of the general public remained unconvinced. Consequently, lightning continued to strike church steeples, ship masts, and different tall constructions, inflicting extreme injury.
Pissed off scientists turned to visual aids to assist make their case for the lightning rod. The exploding thunder house is one instance. When a small quantity of gunpowder was deposited contained in the dollhouse-size construction and a cost was utilized, the home would both explode or not, relying on whether or not it was ungrounded or grounded. [For more on thunder houses, see “Tiny Exploding Houses Promoted 18th-Century Lightning Rods,.” IEEE Spectrum, 1 April 2023.]
One other visible help for selling lightning rods was an ingenious booklet by the British physician and electrical researcher William Snow Harris. Printed round 1861, Three Experimental Illustrations of a General Law of Electrical Discharge made the case for Harris’s invention: a lightning rod for tall-masted picket ships. The rod was connected to the mainmast, ran via the hull, and linked to copper sheeting on the underside of the ship, thus dissipating any electrical energy from a lightning strike into the ocean. It was an amazing concept, and it appeared to work. So why did the British Navy refuse to undertake it? I’ll get to that in a bit.
Find out how to Illustrate the Rules of Lightning
The “experimental illustrations” in Harris’s 16-page pamphlet have been supposed to be interactive, every one highlighting a particular precept of conductivity. The illustrations have been plated with gold leaf to imitate the conducting path of lightning. When the reader utilized a cost to 1 finish, the present charred a black course alongside the web page. Within the illustration at high, somebody has clearly completed this on the proper hand facet.
Within the first experimental illustration in Harris’s guide, the gold leaf is scattered haphazardly throughout the web page. Linda Corridor Library of Science, Engineering & Know-how
The gold leaf in Harris’s first experimental illustration is positioned haphazardly to point out how electrical energy will observe the trail of least resistance. If sturdy sufficient, the electrical energy will bounce throughout small breaks to the closest adjoining metallic piece. Notably, items of gold that don’t lie alongside the trail stay unaffected. Harris’s lesson right here is that if there have been a stable, uninterrupted line of steel that’s sufficiently remoted from different items—say, a lightning rod on a picket ship’s mast—the present would observe that channel whereas sparing the remainder.
The second experiment addresses an issue that was frequent within the days of tall ships: the rise and fall of the lightning rod because the jibs and rigging have been adjusted in keeping with the climate. Whereas a church steeple and its lightning rod stay mounted, a movable mast and the always altering rigging altered the configuration of the lightning rod. The experiment demonstrates that Harris’s design wasn’t affected by such adjustments. A cost wouldn’t dead-end and detonate midship simply because a jib had been lowered. It will nonetheless observe the conductor that results in the perfect exit for dissipation—that’s, the ship’s backside.
The second experiment was supposed to point out, in a stylized means, the impact of the lightning rod rising and falling because the jibs and rigging have been adjusted.Linda Corridor Library of Science, Engineering & Know-how

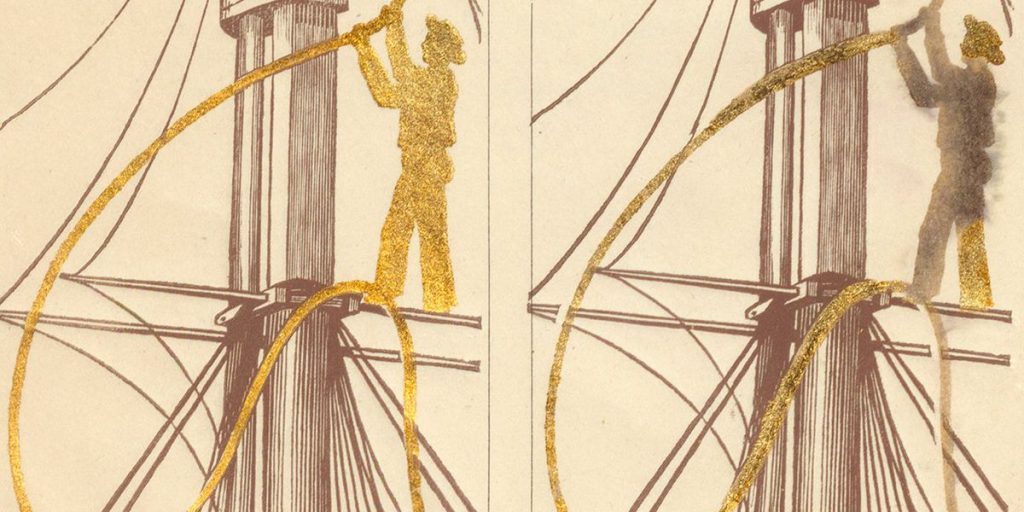

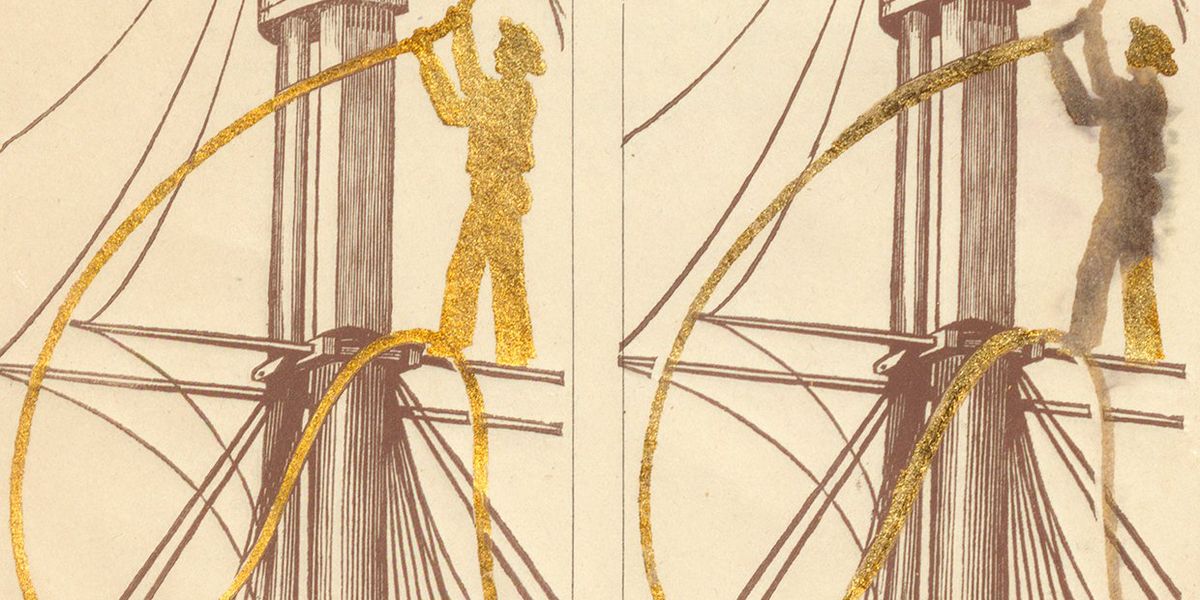

The ultimate experiment within the pamphlet, the one proven at high, takes direct goal at the popular lightning conductor employed by the Royal Navy: a versatile cable or hyperlink of chains. The cable or chain was connected to the highest of the foremast after which unfurled into the ocean. However so deployed, it typically bought in the way in which, and most captains opted to retailer it rolled up someplace on deck. Each time a squall was noticed on the horizon, one unfortunate sailor needed to rapidly haul the chain up the mast and connect it.
The experiment illustrates what would occur if the sailor have been to unintentionally are available in contact with two factors of a unfastened conductive cable throughout a lightning storm. As a substitute of following the cable, the discharge would course straight via him. As Harris wrote within the description, the poor seaman “can be in all probability destroyed.” Dying was a transparent threat for sailors on unprotected ships, simply because it was for bell ringers in unprotected church buildings.
Mr. Thunder-and-Lightning Harris
William Snow Harris printed Three Experimental Illustrations when he was about 70, and he died six years later. The booklet was his last salvo in a battle he had waged with the Royal Navy for many years.
Born within the port metropolis of Plymouth, England, in 1791, Harris studied drugs in Edinburgh after which returned dwelling, arrange a observe, and was admitted to the Royal Faculty of Physicians. Within the 1810s, his fascination with lightning strikes and tall-masted picket ships took maintain. He started engaged on a shipborne lightning-rod system, perfecting it by 1820.
William Snow Harris (1791–1867) educated as a medical physician however gave up his observe to deal with selling his lightning rod for picket ships. Plymouth Athenaeum
For the remainder of his profession, Harris tried to persuade the Royal Navy to undertake it. He deserted his medical observe and dove deeper into his research of electrical energy. He introduced papers on the Royal Society and wrote books on the character of thunderstorms. An 1823 book on the results of lightning on ships additionally featured his gold-leafed experimental illustrations, together with a vivid description of a lightning strike on an unprotected ship: “The primary-top mast, from head to heel, was shivered right into a thousand splinters….” Harris enlisted help for his system from main scientists, similar to Michael Faraday, Charles Wheatstone, and Humphry Davy. He ultimately earned the nickname Mr. Thunder-and-Lightning Harris for his zealotry.
Regardless of his enthusiasm and the help of the Royal Society and different scientists, although, the navy declined to just accept Harris’s proposal.
Harris continued to press his case. A well-publicized lightning strike on the U.S. packet ship New York in 1827 helped. Three days into its transatlantic journey, lightning struck at daybreak. The “electrical fluid,” because it was then referred to as, ran down the mainmast, bursting three iron hoops and shattering the masthead and cap. It entered a storeroom and demolished the bulkheads and fittings earlier than following a lead pipe into the women’ cabin and fragmenting a big mirror. Elsewhere, it overturned a piano, cut up the eating desk into items, and magnetized the ship’s chronometer in addition to a lot of the males’s watches.
A lightning conductor wasn’t in place throughout the strike, however the crew raised the iron chain within the aftermath. Good factor they did. At 2:00 p.m., lightning struck the unlucky New York once more. Because the American Journal of Science and Arts reported, the chain was “actually torn to items and scattered to the winds,” but it surely did its job and saved the ship, and no passengers have been killed.
Subsequently, the admiralty agreed to conduct a pilot take a look at of Harris’s system. Beginning in 1830, the navy fitted the conductor onto 11 vessels, ranging in measurement from a 10-gun brig to a 120-gun ship of the road. The brig occurred to be the HMS Beagle, which was about to set sail for a surveying journey of South America. After it returned 5 years later, considered one of its passengers, Charles Darwin, printed an account that made the voyage well-known. (His 1859 guide, On the Origin of Species, was additionally based mostly on his analysis aboard the Beagle.)
The HMS Beagle, made well-known by Charles Darwin, was considered one of 11 British navy ships to be outfitted with Harris’s mounted lightning rods. Bettmann/Getty Pictures
Throughout the expedition, the ship steadily encountered lightning and was struck no less than twice. In August 1832, as an illustration, whereas the ship was anchored off Monte Video, Uruguay, First Lieutenant Bartholomew Sulivandescribed a strike that he witnessed whereas on deck: “The mainmast, for the immediate, gave the impression to be a mass of fireside, I felt sure that the lightning had handed down the conductor on that mast.”
Sulivan had beforehand been aboard the Thetis, whose foremast had been destroyed by lightning, so he was particularly attuned to the destruction storms might trigger. But on the Beagle, he wrote,“not the slightest sick consequence was skilled.” When Captain Robert FitzRoy made his report back to the admiralty, he likewise endorsed Harris’s system: “Had been I allowed to decide on between masts so fitted and the opposite, I ought to resolve in favor of these having Harris’s conductors.”
Not one of the 11 ships fitted with Harris’s system was broken by lightning. And but, the navy quickly started eradicating the demonstration conductors and inserting them within the scrap heap.
Numbers Don’t Lie
To not be defeated, Harris turned to statistics, compiling an inventory of 235 British naval vessels broken by lightning, from the Abercromby (26 October 1811, topmast shivered into splinters 14 toes down) to the Zebra (27 March 1838, main-topgallant and topmast shivered; fell on the deck; main-cap cut up; the jib and sails on mainmast scorched). Moreover, he cataloged the deaths of practically 100 seamen and severe damage of about 250 others. Throughout one significantly unhealthy interval of 5 or 6 years, Harris realized, lightning destroyed 40 ships of the road, 20 frigates, and 10 sloops, disabling about one-eighth of the British navy.
In December 1838, lightning struck and broken a significant warship, the 92-gun Rodney. Sensing a chance to make a public case for his system, Harris bypassed the admiralty and petitioned the Home of Commons to assessment his claims. A Naval Fee appointed to try this wound up firmly supporting Harris.
Even then, the navy didn’t completely purchase into Harris’s system. As a substitute, it allowed commanders to put in it—if they petitioned the admiralty. Given how brazenly hostile the admiralty was towards Harris, I’m guessing many captains didn’t do this.
A Lightning Rod for Each British Warship
Lastly, in June 1842, the admiralty ordered the usage of Harris’s lightning rods on all Royal Navy vessels. In accordance with Theodore Bernstein and Terry S. Reynolds, who chronicled Harris’s battle of their 1978 article “Protecting the Royal Navy from Lightning: William Snow Harris and His Struggle with the British Admiralty for Fixed Lightning Conductors” in IEEE Transactions on Schooling, the navy’s change of coronary heart wasn’t as a consequence of higher information or extra appeals by Harris and his backers. It principally got here all the way down to politics.
Bernstein and Reynolds supply three potential explanations as to why it took the admiralty greater than twenty years to undertake Harris’s demonstrably superior system. The primary was ignorance. Though the scientific group was satisfied early on by Harris, some individuals nonetheless believed that conductors attracted lightning, they usually anxious that lightning might ignite the shops of gunpowder on board.
A second argument was monetary. Harris’s system was considerably costlier than a easy cable or chain. In a single 1831 estimate, the price of Harris’s system ranged from £102 for a 10-gun brig to £365 for a 120-gun brig, in comparison with lower than £5 for the easy cable. Positive, Harris’s system was efficient, however was it greater than 20 instances as efficient? In fact, the easy cable supplied no safety in any respect if it was by no means deployed, as many captains admitted to.
John Barrow (1764–1848), second secretary to the Royal Navy Admiralty, was singularly efficient at blocking the adoption of Harris’s lightning rod. National Portrait Gallery
However the final purpose for the navy’s resistance, argued Bernstein and Reynolds, was political. In 1830, when Harris appeared on the verge of success, the Whigs gained management of Parliament. In the midst of just a few months, lots of Harris’s authorities supporters discovered themselves powerless or outright fired. It wasn’t till late 1841, when the Tories regained energy, that Harris’s fortunes reversed.
Bernstein and Reynolds recognized John Barrow, second secretary to the admiralty, as the important thing particular person standing in Harris’s means. Political appointees got here and went, however Barrow held his workplace for over 40 years, from 1804 to 1845. Barrow managed the navy’s finances, and he apparently thought of Harris a charlatan who was attempting to promote the navy an costly and ineffective expertise. He used his place to repeatedly block it. One navy supporter of Harris’s system referred to as Barrow “probably the most obstinate man dwelling.”
In Barrow’s protection, as Bernstein and Reynolds famous of their article, Harris’s system was model new, and the navy already had an affordable and considerably efficient solution to cope with lightning. Harris thus needed to show the worth of his invention, and politicians needed to study to belief the outcomes. That stress between scientists and politicians persists to at the present time.
Harris ultimately proved victorious. By 1850, each vessel within the Royal Navy was geared up together with his lightning rod. However the victory was fleeting. By the beginning of the following decade, the primary British ironclad ship had appeared, and by the tip of the century, all new naval ships have been product of steel. Steel ships naturally conduct lightning to the encircling water. There was now not a necessity for a lightning rod.
A part of a continuing series historic artifacts that embrace the boundless potential of expertise.
An abridged model of this text seems within the March 2025 print situation as “The Path of Most Resistance.”
