TSMC described its subsequent era transistor know-how this week on the IEEE International Electron Device Meeting (IEDM) in San Francisco. The N2, or 2-nanometer, know-how is the semiconductor foundry large’s first foray into a brand new transistor structure, known as nanosheet or gate-all-around.
Samsung has a course of for manufacturing comparable units, and each Intel and TSMC anticipate to be producing them in 2025.
In comparison with TSMC’s most superior course of right now, N3 (3-nanometer), the brand new know-how provides as much as a 15 % pace up or as a lot as 30 % higher vitality effectivity, whereas rising density by 15 %.
N2 is “the fruit of greater than 4 years of labor,” Geoffrey Yeap, TSMC vp of R&D and superior know-how informed engineers at IEDM. At present’s transistor, the FinFET, has a vertical fin of silicon at its coronary heart. Nanosheet or gate-all-around transistors have a stack of slender ribbons of silicon as an alternative.
The distinction not solely offers higher management of the move of present via the machine, it additionally permits engineers to provide a bigger number of units, by making wider or narrower nanosheets. FinFETs may solely present that selection by multiplying the variety of fins in a tool—resembling a tool with one or two or three fins. However nanosheets give designers the choice of gradations in between these, such because the equal of 1.5 fins or no matter may swimsuit a selected logic circuit higher.
Referred to as Nanoflex, TSMC’s tech permits completely different logic cells constructed with completely different nanosheetwidths on the identical chip. Logic cells constituted of slender units may make up basic logic on the chip, whereas these with broader nanosheets, able to driving extra present and switching sooner, would make up the CPU cores.
The nanosheet’s flexibility has a very massive affect on SRAM, a processor’s fundamental on-chip reminiscence. For a number of generations, this key circuit, made up of 6 transistors, has not been shrinking as quick as different logic. However N2 appears to have damaged this streak of scaling stagnation, leading to what Yeap described because the densest SRAM cell to this point: 38 megabits per sq. millimeter, or an 11 % enhance over the earlier know-how, N3. N3 solely managed a 6 % enhance over its personal predecessor. “SRAM harvests the intrinsic acquire of going to gate-all-around,” says Yeap.
Future Gate-All-Round Transistors
Whereas TSMC delivered particulars of subsequent 12 months’s transistor, Intel checked out how lengthy trade may be capable to scale it down. Intel’s reply: Longer than initially thought.
“The nanosheet structure truly is the ultimate frontier of transistor structure,” Ashish Agrawal, a silicon technologist in Intel’s parts analysis group, informed engineers. Even future complementary FET (CFET) units, probably arriving within the mid-2030s, are constructed of nanosheets. So it’s vital that researchers perceive their limits, mentioned Agrawal.
“We’ve got not hit a wall. It’s doable, and right here’s the proof… We’re making a very fairly good transistor.” —Sanjay Natarajan, Intel

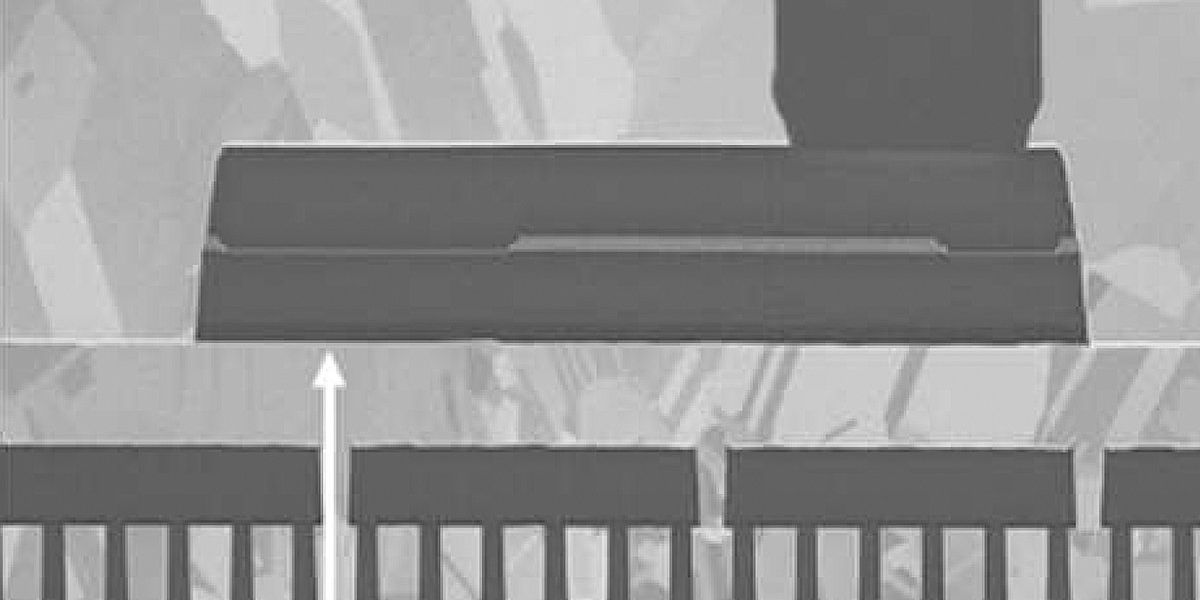

Intel proved {that a} transistor with a 6-nanometer gate size works properly.Intel
Intel explored a vital scaling issue, gate size, which is the space coated by the gate between the transistor’s supply and drain. The gate controls the move of present via the machine. Cutting down gate size is vital to decreasing the minimal distance from machine to machine inside customary logic circuits, known as known as contacted poly pitch, or CPP, for historic causes.
“CPP scaling is primarily by gate size, but it surely’s predicted it will stall on the 10-nanometer gate size,” mentioned Agrawal. The pondering had been that 10 nanometers was such a brief gate size that, amongst different issues, an excessive amount of present would leak throughout the machine when it was speculated to be off.
“So we checked out pushing under 10 nanometers,” Agrawal mentioned. Intel modified the everyday gate-all-around construction so the machine would have solely a single nanosheet via which present would move when the machine was on.
By thinning that nanosheet down and modifying the supplies surrounding it, the staff managed to provide an acceptably performing machine with a gate size of simply 6 nm and a nanosheet simply 3 nm thick.
Ultimately, researchers anticipate silicon gate-all-around units to achieve a scaling restrict, so researchers at Intel and elsewhere have been working to interchange the silicon within the nanosheet with 2D semiconductors resembling molybdenum disulfide. However the 6-nanometer outcome means these 2D semiconductors won’t be wanted for some time.
“We’ve got not hit a wall,” says Sanjay Natarajan, senior vp and basic supervisor of know-how analysis at Intel Foundry. “It’s doable, and right here’s the proof… We’re making a very fairly good transistor” on the 6-nanometer channel size.
