To Nick de Vries, chief expertise officer on the solar-energy developer Silicon Ranch, a transformer is like an interstate on-ramp: It boosts the voltage of the electrical energy that his photo voltaic crops generate to match the voltage of grid transmission traces. “They’re your ticket to journey,” says de Vries. “In the event you don’t have your high-voltage transformer, you don’t have a mission.”
Just lately, this ticket has grown a lot tougher to come back by. The demand for transformers has spiked worldwide, and so the wait time to get a brand new transformer has doubled from 50 weeks in 2021 to almost two years now, in response to a
report from Wood MacKenzie, an energy-analytics agency. The await the extra specialised massive energy transformers (LPTs), which step up voltage from energy stations to transmission traces, is as much as 4 years. Prices have additionally climbed by 60 to 80 percent since 2020.

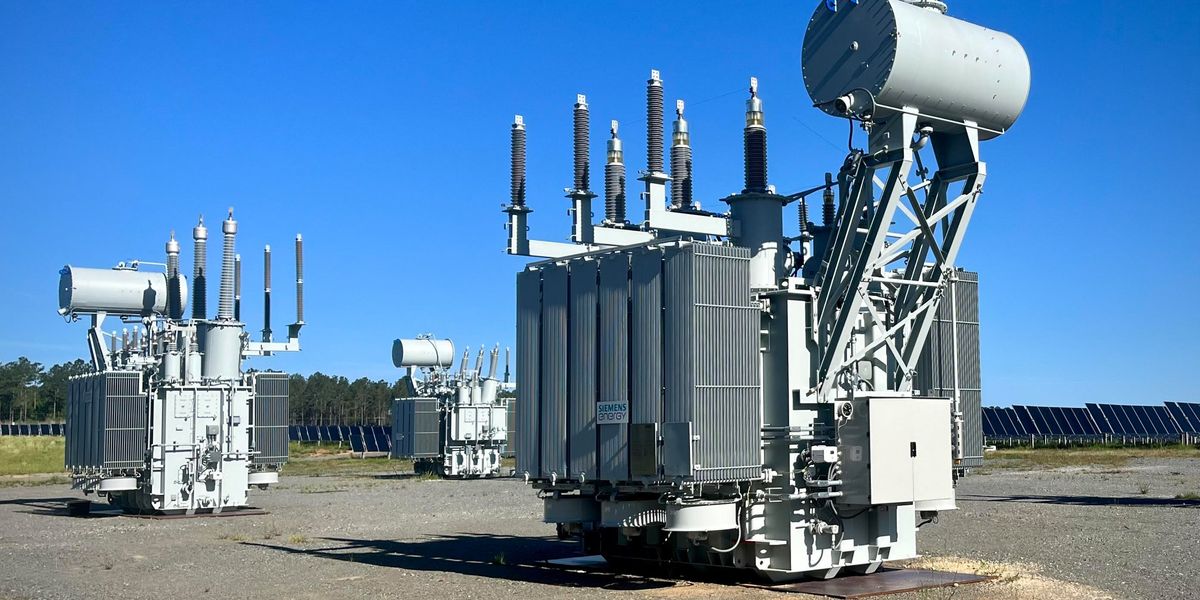

About 5 years in the past, de Vries grew apprehensive that transformer shortages would postpone his photo voltaic tasks from coming on-line, so he started ordering transformers years earlier than they’d truly be wanted. Silicon Ranch, primarily based in Nashville, now has a pipeline of {custom} transformers to ensure provide chain issues don’t stall its photo voltaic tasks.
The corporate isn’t alone in its quandary. 1 / 4 of the world’s renewable-energy tasks could also be delayed whereas awaiting transformers to attach them to native grids, in response to the Wooden MacKenzie report. In India, the await 220-kilovolt transformers has
leaped from 8 to 14 months, doubtlessly holding up almost 150 gigawatts of recent photo voltaic growth.
And it’s not simply renewable-energy tasks. The transformer scarcity touches utilities, householders, companies, rail methods, EV charging stations—anybody needing a grid connection. In Clallam County, the a part of Washington state the place the
Twilight films are set, officers in Might 2022 started to disclaim new home-construction requests as a result of they couldn’t get sufficient pad-mounted transformers to step down voltage to properties. To deal with the backlog of consumers who had already paid for brand spanking new electrical service, the utility scrounged up refurbished transformers, or “ranch runners,” which helped however seemingly received’t final so long as new ones.
The ripple results of the scarcity contact each public coverage and security. When a transformer fails from put on and tear, will get hit by a storm, or is
damaged by warfare or sabotage, the lack to rapidly substitute it will increase the danger of an influence outage. The European Green Deal, which plans for an infinite build-out of Europe’s transmission community by 2030 to speed up electrification, is imperiled by the protracted wait instances for transformers, says Joannes Laveyne, {an electrical} engineer and energy-systems skilled at Ghent College, in Belgium.
For energy engineers, this disaster can be a possibility. They’re now transforming transformer designs to make use of totally different or much less sought-after supplies, to last more, to incorporate energy electronics that enable the straightforward conversion between AC and DC, and to be extra standardized and fewer custom-made than the transformers of at the moment. Their improvements may make this vital piece of infrastructure not solely extra resistant to produce chain weaknesses, but additionally higher suited to the facility grids of the long run.
How Transformers Work
A transformer is a
simple thing—and an previous one, too, invented within the Eighties. A typical one has a two-sided core made from iron or metal with copper wire wrapped round both sides. The units of wires, known as windings, aren’t linked, however via electromagnetic induction throughout the core, present transfers from one coil to the opposite. By altering the variety of instances the wire wraps round both sides of the core, engineers can change the voltage that emerges from the gadget in order that it’s larger or decrease than what entered.
This fundamental setup underlies transformers in a variety of sizes. An LPT can weigh as a lot as two blue whales and may be used to step up the electrical energy that emerges from a fossil gasoline or nuclear power plant—sometimes within the hundreds of volts—to match the a whole bunch of hundreds of volts operating via transmission traces. When the electrical energy on these traces arrives at a metropolis, it meets an influence substation, which has transformers that step down the voltage to tens of hundreds of volts for native distribution. Distribution transformers, that are smaller, lower the voltage additional, ultimately to the a whole bunch of volts that can be utilized safely in properties and companies.
The simplicity of the design has been its energy, says
Deepak Divan, {an electrical} engineer and director of the Georgia Tech Heart for Distributed Power. Transformers are massive, cumbersome gadgets constructed to endure for many years. Their very sturdiness shoulders the grid.
However they’re slightly just like the gears and chain of a bicycle—adept at their easy conversion activity, and little else. For instance, conventional transformers that work solely with AC can’t change to DC with out further parts. That AC-DC conversion is vital as a result of a bunch of applied sciences that purpose to be part of the cleaner power future, together with the electrolyzers that create hydrogen gasoline, EV charging stations, and power storage, all require a number of transformers, and so they all want DC energy. Stable-state energy electronics, however, can seamlessly deal with AC-DC conversions. “Wouldn’t or not it’s good to have a power-electronic alternative for the transformer?” Divan says. “It offers you management. And, in precept, it may turn out to be smaller in case you actually do it proper.”
The concept of a solid-state transformer has been
kicking around in academia and trade for years. Divan and his staff name their model a modular controllable transformer (MCT). It makes use of semiconductors and lively digital parts to not solely rework electrical energy to different voltages but additionally invert the present between DC and AC in a single stage. It’s additionally constructed with novel insulations and different measures to guard it from lightning strikes and energy surges. Divan and his staff acquired an award in 2023 from IEEE Transactions on Energy Electronics for certainly one of their designs.
Divan’s modular transformer doesn’t must be custom-built for every software, which may ease manufacturing bottlenecks. However as an rising expertise, it’s dearer and fragile than a traditional transformer. For instance, at the moment’s semiconductors can’t survive electrical masses better than about 1.7 kV. A tool linked to the grid would want to endure at minimal 13 kV, which might imply stacking these transformer modules and hoping the entire group can face up to no matter the actual world throws its approach, Divan says.
“If I’ve 10 converter modules stacked in collection to resist the excessive voltage, what occurs if one fails? What occurs if certainly one of them will get a sign that’s delayed by 200 nanoseconds? Does the entire thing collapse on you? These are all very fascinating, difficult issues,” Divan says.
Researchers at Oak Ridge Nationwide Laboratory’s GRID-C developed a next-generation transformer that’s a lot smaller than earlier generations and has the identical capabilities. Alonda Hines/ORNL/U.S. Dept. of Power
At Oak Ridge Nationwide Laboratory’s Grid Analysis Integration and Deployment Heart, or GRID-C,
Madhu Chinthavali can be evaluating new applied sciences for next-gen transformers. Including energy electronics may allow transformers to handle energy move in ways in which standard ones can not, which may in flip help in adding more solar and wind power. It may additionally allow transformers to place info into motion, similar to instantaneously responding to an outage or failure on the grid. Such superior transformers aren’t the best resolution in every single place however utilizing them in key locations will assist add extra masses to the grid. Equipping them with good gadgets that relay knowledge would give grid operators higher real-time info and improve general grid resilience and sturdiness, says Chinthavali, who directs GRID-C.
New sorts of power-electronic transformers, if they are often made reasonably priced and dependable, could be a breakthrough for photo voltaic power, says Silicon Ranch’s de Vries. They might simplify the chore of regulating the voltage going from photo voltaic crops to transmission traces. At current, operators should try this voltage regulation consistently due to the variable nature of the solar’s power—and that activity wears down inverters, capacitors, and different parts.
Why Is There a Transformer Scarcity?
Driving the transformer scarcity are market forces stemming from electrical energy demand and materials provide chains. For instance, almost all transformer cores are made from grain-oriented electrical metal, or GOES—a fabric
also used in electric motors and EV chargers. The enlargement of these adjoining industries has intensified the demand for GOES and diverted a lot of the availability.
On high of this, transformer manufacturing typically slowed after a increase interval about 20 years in the past.
Hitachi Energy, Siemens Energy, and Virginia Transformers have introduced plans to scale up manufacturing with new services in Australia, China, Colombia, Finland, Germany, Mexico, the US, and Vietnam. However these efforts received’t ease the logjam quickly.
On the similar time, the demand for transformers has skyrocketed over the past two years by as a lot as
70 percent for some U.S. producers. International demand for LPTs with voltages over 100 kV has grown greater than 47 % since 2020, and is anticipated to extend one other 30 % by 2030, in response to analysis by Wilfried Breuer, managing director of German electrical gear producer Maschinenfabrik Reinhausen, in Regensburg. Getting older grid infrastructure, new renewable-energy era, increasing electrification, elevated EV charging stations, and new knowledge facilities all contribute to the rising demand for these machines.
Compounding the issue is {that a} typical LPT doesn’t simply roll off an meeting line. Every is a bespoke creation, says
Bjorn Vaagensmith, a power-systems researcher at Idaho Nationwide Laboratory. On this low-volume trade, “a manufacturing unit will make possibly 50 of this stuff a yr,” he says.
The LPT’s design is dictated by the structure of the substation or energy plant it serves, in addition to the voltage wants and the orientation of the incoming and outgoing energy traces. For instance, the bushings, that are upward-extending arms that join the transformer to energy traces, should be in-built a selected place to intercept the traces.
Such customization slows manufacturing and will increase the problem of changing a failed transformer. It’s additionally the rationale why many power corporations don’t order LPTs forward of time, says Laveyne at Ghent. “Think about you get the transformer delivered however the allowing course of results in a stall, or delay, or perhaps a cancellation [of the project]. Then you definitely’re caught with a transformer you’ll be able to’t actually use.”
GE Vernova Superior Analysis developed a versatile massive energy transformer that it has been field-testing at a substation in Columbia, Miss., since 2021. Cooperative Power
Much less custom-made, extra one-size-fits-all transformers may ease provide chain issues and scale back energy outages. To that finish, a staff at
GE Vernova Advanced Research (GEVAR) helped develop a “versatile LPT.” In 2021, the staff started field-testing a 165-kV model at a substation operated by Cooperative Energy in Mississippi, the place it stays lively.
Ibrahima Ndiaye, a senior principal engineer at GEVAR who led the mission, says the breakthrough was determining methods to give a traditional transformer the potential to vary its impedance (that’s, its resistance to electrical energy move) with out altering some other function within the transformer, together with its voltage ratio.
Impedance and voltage ratio are each vital options of a transformer that ordinarily should be tailor-made to every use case. In the event you can tweak each components independently, then you’ll be able to modify the transformer for numerous makes use of. However altering the impedance with out additionally altering the transformer’s voltage ratio initially appeared inconceivable, Ndiaye says.
The answer turned out to be surprisingly easy. The engineer added the identical quantity of windings to either side of the transformer’s core, however in reverse instructions, cancelling out the voltage improve and thereby permitting him to tweak one issue with out mechanically altering the opposite. “There isn’t a [other] transformer on the earth that has a functionality of that at the moment,” Ndiaye says.
The versatile LPT may work like a common spare, filling in for LPTs that fail, and negating the necessity to preserve a {custom} spare for each transformer, Ndiaye says. This in flip would cut back the demand for these kind of transformers and essential supplies similar to GOES. The versatile LPT additionally lets the grid function reliably even when there are variable renewable assets, or massive variable masses similar to a financial institution of EV charging stations.
Avangrid’s cell transformer has multivoltage capabilities and could be trucked to any of Avangrid’s onshore photo voltaic or wind tasks inside a few months. Hitachi Power and Avangrid
Equally,
Siemens Energy has been growing what it calls “fast response transformers”—plug-and-play backups that might substitute a busted transformer inside weeks. And the renewable-energy firm Avangrid this yr introduced a mobile transformer that may be trucked to any of its photo voltaic or wind tasks inside a few months.
Transformers Designed for Longevity
There’s room to enhance, quite than substitute, the century-old design of the standard transformer, says
Stefan Tenbohlen, an power researcher on the College of Stuttgart, in Germany. He cofounded the University Transformer Research Alliance, to attach worldwide researchers who’re tinkering with standard designs. A chief purpose is to ensure new transformers final even longer than the older era did.
One method is to strive totally different insulation strategies. Copper windings are sometimes insulated by paper and mineral oil to guard them from overheating. New approaches substitute the mineral oil with pure esters to permit the inside of the transformer to soundly attain larger temperatures, prolonging the gadget’s lifespan within the course of. Vaagensmith at Idaho Nationwide Lab has experimented with ceramic paper—a skinny, light-weight, ultra-heat-resistant materials made from alumina silicate fibers—as insulation. “We cooked it as much as a thousand levels Celsius, which is ridiculously excessive for a transformer, and it was advantageous,” he says.
Researchers at Oak Ridge Nationwide Laboratory constructed hole transformer cores made {of electrical} metal utilizing additive manufacturing. Alex Plotkowski/ORNL
Altering different supplies utilized in LPTs may additionally assist. Hole-core transformers, for instance, use far much less metal. Scientists at Oak Ridge, in Tennessee,
have been testing 3D printing of hole cores made {of electrical} metal. Switching to hole cores and with the ability to 3D print them would ease demand for the fabric in the US, the place there’s only one firm that produces GOES metal for transformers, in response to a 2022 report from the U.S. Division of Power.
Transformer Trade Faces Capability Crunch
Transformer manufacturing was once a cyclical enterprise the place demand ebbed and flowed—a longstanding sample that created an ingrained mind-set. Consequently, regardless of clear indicators {that electrical} infrastructure is about for a sustained increase and that the previous days aren’t coming again, many transformer producers have been hesitant to extend capability, says
Adrienne Lotto, senior vice chairman of grid safety, technical, and operations companies for the American Public Energy Affiliation, in Arlington, Va. She sums up their angle: “If the demand is once more going to easily fall off, why make investments hundreds of thousands of {dollars}’ price of capital into your manufacturing facility?”
However better demand for electrical energy
is coming. The current guide Energy 2040 (Springer), coauthored by Georgia Tech’s Divan, lays out a few of the staggering numbers. The capability of all of the power tasks ready to connect with the U.S. grid quantities to 2,600 GW—greater than double the nation’s total era capability presently. A mean estimate of U.S. EV adoption suggests the nation could have 125 million EVs by 2040. The electrical energy calls for of U.S. knowledge facilities could double by the tip of this decade due to the increase in artificial intelligence. The National Renewable Energy Lab discovered that U.S. transformer capability might want to improve by as a lot as 260 % by 2050 to deal with all the additional load.
Globally, electrical energy provided 20 % of the world’s power wants in 2023, and will attain 30 % by 2030 as nations flip to electrification as a method to decarbonize,
according to the International Energy Agency. India and China are anticipated to see the quickest demand development in that point. India put in more solar capacity within the first quarter of 2024 than in any quarter beforehand, and but, as talked about, the wait time to get these photo voltaic tasks operating is rising due to the transformer shortage.
The world’s energy methods are usually not accustomed to such upheaval, Divan says. As a result of longstanding applied sciences just like the transformer change so slowly, utilities spend little or no—maybe 0.1 % of their budgets—on R&D. However they have to put together for a sea change, Divan says. “Utilities are usually not going to have the ability to cease this tsunami that’s coming. And the stress is on.”
