For a machine that’s designed to copy a star, the world’s latest stellarator is a surprisingly humble-looking equipment. The kitchen-table-size contraption sits atop stacks of bricks in a cinder-block room on the Princeton Plasma Physics Laboratory (PPPL) in Princeton, N.J., its elements hand-labeled in marker.
The PPPL workforce invented this nuclear-fusion reactor, accomplished final yr, utilizing primarily off-the-shelf elements. Its core is a glass vacuum chamber surrounded by a 3D-printed nylon shell that anchors 9,920 meticulously positioned everlasting rare-earth magnets. Sixteen copper-coil electromagnets resembling big slices of pineapple wrap across the shell crosswise.
The association of magnets kinds the defining characteristic of a stellarator: a wholly exterior magnetic subject that directs charged particles alongside a spiral path to restrict a superheated plasma. Inside this enigmatic fourth state of matter, atoms which were stripped of their electrons collide, their nuclei fusing and releasing power in the identical course of that powers the solar and different stars. Researchers hope to seize this power and use it to supply clear, zero-carbon electrical energy.
PPPL’s new reactor is the primary stellarator constructed at this authorities lab in 50 years. It’s additionally the world’s first stellarator to make use of everlasting magnets, reasonably than simply electromagnets, to coax plasma into an optimum three-dimensional form. Costing solely US $640,000 and inbuilt lower than a yr, the machine stands in distinction to outstanding stellarators like Germany’s
Wendelstein 7-X, an enormous, tentacled machine that took $1.1 billion and greater than 20 years to assemble.

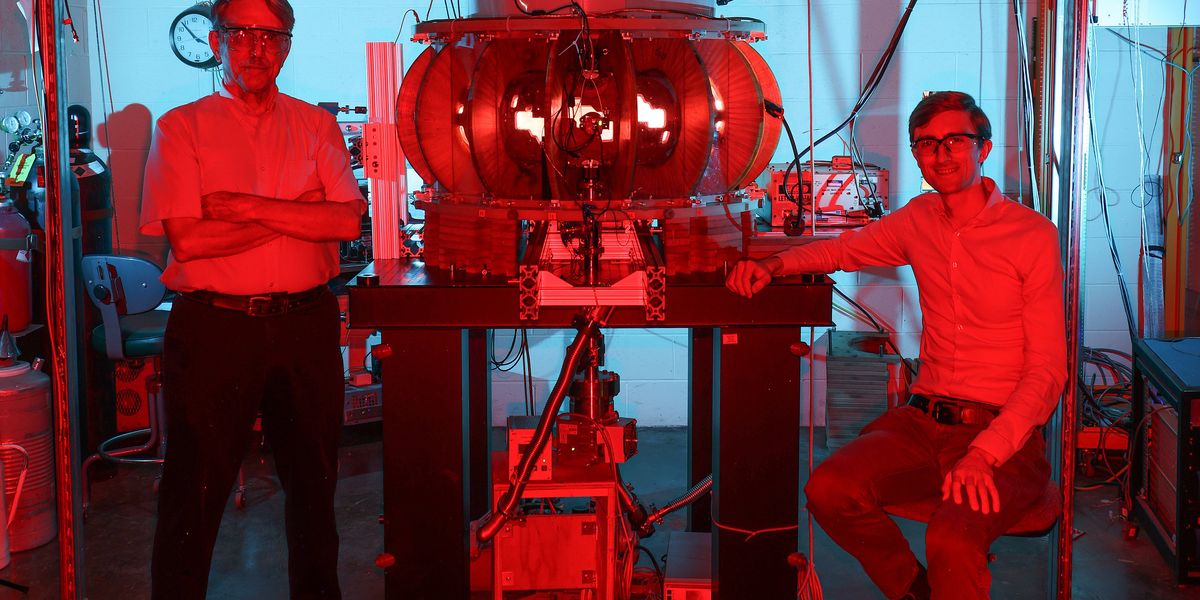

Sixteen copper-coil electromagnets resembling big slices of pineapple wrap across the stellarator’s shell. Jayme Thornton
PPPL researchers say their less complicated machine demonstrates a technique to construct stellarators way more cheaply and shortly, permitting researchers to simply check new ideas for future fusion energy crops. The workforce’s use of everlasting magnets might not be the ticket to producing commercial-scale power, however PPPL’s accelerated design-build-test technique might crank out new insights on plasma habits that would push the sphere ahead extra quickly.
Certainly, the workforce’s work has already spurred the formation of two stellarator startups which can be testing their very own PPPL-inspired designs, which their founders hope will result in breakthroughs within the quest for fusion power.
Are Stellarators the Way forward for Nuclear Fusion?
The pursuit of power manufacturing by means of nuclear fusion is taken into account by many to be the holy grail of unpolluted power. And it’s develop into more and more vital as a quickly warming local weather and hovering electrical energy demand have made the necessity for steady, carbon-free energy ever extra acute. Fusion provides the prospect of a virtually limitless supply of power with no greenhouse gasoline emissions. And in contrast to typical nuclear fission, fusion comes with no threat of meltdowns or weaponization, and no long-lived nuclear waste.
Fusion reactions have powered the solar because it shaped an estimated 4.6 billion years in the past, however they’ve by no means served to supply usable power on Earth, regardless of
decades of effort. The issue isn’t whether or not fusion can work. Physics laboratories and even a number of people have efficiently fused the nuclei of hydrogen, liberating power. However to produce more power than is consumed within the course of, merely fusing atoms isn’t sufficient.
Fueled by free pizza, grad college students meticulously positioned 9,920 everlasting rare-earth magnets contained in the stellarator’s 3D-printed nylon shell. Jayme Thornton
The previous few years have introduced eye-opening advances from government-funded fusion applications resembling PPPL and the
Joint European Torus, in addition to private companies. Enabled by good points in high-speed computing, artificial intelligence, and supplies science, nuclear physicists and engineers are toppling longstanding technical hurdles. And stellarators, a once-overlooked method, are again within the highlight.
“Stellarators are one of the lively analysis areas now, with new papers popping out nearly each week,” says
Scott Hsu, the U.S. Division of Power’s lead fusion coordinator. “We’re seeing new optimized designs that we weren’t able to arising with even 10 years in the past. The opposite half of the story that’s simply as thrilling is that new superconductor know-how and superior manufacturing capabilities are making it extra doable to truly understand these beautiful designs.”
Why Is Plasma Containment Essential in Fusion Power?
For atomic nuclei to fuse, the nuclei should overcome their pure electrostatic repulsion. Extraordinarily excessive temperatures—within the thousands and thousands of levels—will get the particles shifting quick sufficient to collide and fuse. Deuterium and tritium, isotopes of hydrogen with, respectively, one and two neutrons of their nuclei, are the popular fuels for fusion as a result of their nuclei can overcome the repulsive forces extra simply than these of heavier atoms.
Heating these isotopes to the required temperatures strips electrons from the atomic nuclei, forming a plasma: a maelstrom of positively charged nuclei and negatively charged electrons. The trick is retaining that searingly scorching plasma contained in order that among the nuclei fuse.
Presently, there are two fundamental approaches to containing plasma.
Inertial confinement makes use of high-energy lasers or ion beams to quickly compress and warmth a small gas pellet. Magnetic confinement makes use of highly effective magnetic fields to information the charged particles alongside magnetic-field strains, stopping these particles from drifting outward.
Many
magnetic-confinement designs—together with the $24.5 billion ITER reactor underneath building since 2010 within the hills of southern France—use an inner present flowing by means of the plasma to assist to form the magnetic subject. However this present can create instabilities, and even small instabilities within the plasma may cause it to flee confinement, resulting in power losses and potential harm to the {hardware}.
Stellarators like PPPL’s are a sort of magnetic confinement, with a twist.
How the Stellarator Was Born
Positioned on the finish of Stellarator Highway and a roughly 5-kilometer drive from
Princeton University’s leafy campus, PPPL is one among 17 U.S. Division of Power labs, and it employs about 800 scientists, engineers, and different staff. Hanging in PPPL’s foyer is a black-and-white picture of the lab’s founder, physicist Lyman Spitzer, smiling as he exhibits off the fanciful-looking equipment he invented and dubbed a stellarator, or “star generator.”
In response to the lab’s lore, Spitzer got here up with the thought whereas driving a ski raise at Aspen Mountain in 1951. Enrico Fermi had noticed {that a} easy toroidal, or doughnut-shaped, magnetic-confinement system wouldn’t be adequate to include plasma for nuclear fusion as a result of the charged particles would drift outward and escape confinement.
“This know-how is designed to be a stepping stone towards a fusion energy plant.”
Spitzer decided {that a} figure-eight design with exterior magnets might create helical magnetic-field strains that might spiral across the plasma and extra effectively management and include the energetic particles. That configuration, Spitzer reasoned, could be environment friendly sufficient that it wouldn’t require giant currents working by means of the plasma, thus lowering the chance of instabilities and permitting for steady-state operation.
“In some ways, Spitzer’s good concept was the proper reply” to the issues of plasma confinement, says Steven Cowley, PPPL’s director since 2018. “The stellarator supplied one thing that different approaches to fusion power couldn’t: a steady plasma subject that may maintain itself with none inner present.”
Spitzer’s stellarator shortly captured the creativeness of midcentury nuclear physicists and engineers. However the invention was forward of its time.
Tokamaks vs. Stellarators
The stellarator’s lack of toroidal symmetry made it difficult to construct. The exterior magnetic coils wanted to be exactly engineered into complicated, three-dimensional shapes to generate the twisted magnetic fields required for steady plasma confinement. Within the Fifties, researchers lacked the high-performance computer systems wanted to design optimum three-dimensional magnetic fields and the engineering functionality to construct machines with the requisite precision.
In the meantime, physicists within the Soviet Union have been testing a brand new configuration for magnetically confined nuclear fusion: a doughnut-shaped machine known as a tokamak—a Russian acronym that stands for “toroidal chamber with magnetic coils.” Tokamaks bend an externally utilized magnetic subject right into a helical subject inside by sending a present by means of the plasma. They appeared to have the ability to produce plasmas that have been hotter and denser than these produced by stellarators. And in contrast with the outrageously complicated geometry of stellarators, the symmetry of the tokamaks’ toroidal form made them a lot simpler to construct.
Lyman Spitzer within the early Fifties constructed the primary stellarator, utilizing a figure-eight design and exterior magnets. PPPL
Following the lead of different nations’ fusion applications, the DOE shifted most of its fusion assets to tokamak analysis. PPPL transformed Spitzer’s Mannequin C stellarator right into a tokamak
in 1969.
Since then, tokamaks have dominated fusion-energy analysis. However by the late Nineteen Eighties, the constraints of the method have been changing into extra obvious. Specifically, the currents that run by means of a tokamak’s plasma to stabilize and warmth it are themselves a supply of instabilities because the currents get stronger.
To drive the restive plasma into submission, the geometrically easy tokamaks want further options that improve their complexity and price. Superior tokamaks—there are about 60 at the moment working—have techniques for heating and controlling the plasma and big arrays of magnets to create the confining magnetic fields. In addition they have cryogenics to chill the magnets to superconducting temperatures a number of meters away from a 150 million °C plasma.
Tokamaks to this point have produced power solely briefly pulses. “After 70 years, no person actually has even idea for easy methods to make a steady-state tokamak,” notes
Michael Zarnstorff, a workers analysis physicist at PPPL. “The longest pulse thus far is only a few minutes. After we discuss to electrical utilities, that’s not truly what they need to purchase.”
Computational Energy Revives the Stellarator
With tokamaks gobbling up a lot of the world’s public fusion-energy funds, stellarator analysis lay principally dormant till the Nineteen Eighties. Then, some theorists began to place more and more highly effective computer systems to work to assist them optimize the location of magnetic coils to extra exactly form the magnetic fields.
The hassle acquired a lift in 1981, when then-PPPL physicist
Allen Boozer invented a coordinate system—recognized within the physics neighborhood as Boozer coordinates—that helps scientists perceive how totally different configurations of magnets have an effect on magnetic fields and plasma confinement. They will then design higher units to take care of steady plasma circumstances for fusion. Boozer coordinates may reveal hidden symmetries within the three-dimensional magnetic-field construction, which aren’t simply seen in different coordinate techniques. These symmetries can considerably enhance plasma confinement, scale back power losses, and make the fusion course of extra environment friendly.
“We’re seeing new optimized designs we weren’t able to arising with 10 years in the past.”
“The accelerating computational energy lastly allowed researchers to problem the so-called deadly flaw of stellarators: the shortage of toroidal symmetry,” says Boozer, who’s now a professor of utilized physics at Columbia College.
The brand new insights gave rise to stellarator designs that have been way more complicated than something Spitzer might have imagined [see sidebar, “Trailblazing Stellarators”]. Japan’s
Large Helical Device got here on-line in 1998 after eight years of building. The College of Wisconsin’s Helically Symmetric Experiment, whose magnetic-field coils featured an modern quasi-helical symmetry, took 9 years to construct and started operation in 1999. And Germany’s Wendelstein 7-X—the most important and most superior stellarator ever constructed—produced its first plasma in 2015, after greater than 20 years of design and building.
Experiment Failure Results in New Stellarator Design
Within the late Nineties, PPPL physicists and engineers started designing their very own model, known as the Nationwide Compact Stellarator Experiment (NCSX). Envisioned because the world’s most superior stellarator, it employed a brand new magnetic-confinement idea known as quasi-axisymmetry—a compromise that mimics the symmetry of a tokamak whereas retaining the soundness and confinement advantages of a stellarator through the use of solely externally generated magnetic fields.
“We tapped into each supercomputer we might discover,” says Zarnstorff, who led the NCSX design workforce, “performing simulations of tons of of 1000’s of plasma configurations to optimize the physics properties.”
However the design was, like Spitzer’s authentic invention, forward of its time. Engineers struggled to satisfy the exact tolerances, which allowed for a most variation from assigned dimensions of just one.5 millimeters throughout the whole machine. In 2008, with the undertaking tens of thousands and thousands of {dollars} over finances and years delayed, NCSX was canceled. “That was a really unhappy day round right here,” says Zarnstorff. “We acquired to construct all of the items, however we by no means acquired to place it collectively.”
Now, a section of the NCSX vacuum vessel—a contorted hunk produced from the superalloy Inconel—towers over a lonely nook of the C-Website Stellarator Constructing on PPPL’s campus. But when its presence is a reminder of failure, it’s equally a reminder of the teachings realized from the $70 million undertaking.
For Zarnstorff, crucial insights got here from the engineering postmortem. Engineers concluded that, even when that they had managed to efficiently construct and function NCSX, it was doomed by the shortage of a viable technique to take the machine aside for repairs or reconfigure the magnets and different elements.
With the expertise gained from NCSX and PPPL physicists’ ongoing collaborations with the expensive, delay-plagued Wendelstein 7-X program, the trail ahead grew to become clearer. “No matter we constructed subsequent, we knew we would have liked to make it much less expensively and extra reliably,” says Zarnstorff. “And we knew we would have liked to construct it in a means that might enable us to take the factor aside.”
A Testbed for Fusion Power
In 2014, Zarnstorff started desirous about constructing a first-of-its-kind stellarator that might use everlasting magnets, reasonably than electromagnets, to create its helical subject, whereas retaining electromagnets to form the toroidal subject. (Electromagnets generate a magnetic subject when an electrical present flows by means of them and could be turned on or off, whereas everlasting magnets produce a continuing magnetic subject while not having an exterior energy supply.)
Even the strongest everlasting magnets wouldn’t be able to confining plasma robustly sufficient to supply commercial-scale fusion energy. However they may very well be used to create a lower-cost experimental machine that might be simpler to construct and keep. And that, crucially, would enable researchers to simply alter and check magnetic fields that would inform the trail to a power-producing machine.
PPPL dubbed the machine Muse. “Muse was envisioned as a testbed for modern magnetic configurations and bettering theoretical fashions,” says PPPL analysis physicist Kenneth Hammond, who’s now main the undertaking. “Reasonably than fast industrial software, it’s extra centered on exploring elementary facets of stellarator design and plasma habits.”
The Muse workforce designed the reactor with two unbiased units of magnets. To coax charged particles right into a corkscrew-like trajectory, small everlasting neodymium magnets are organized in pairs and mounted to a dozen 3D-printed panels surrounding the glass vacuum chamber, which was custom-made by glass blowers. Adjoining rows of magnets are oriented in reverse instructions, twisting the magnetic-field strains on the exterior edges.
Outdoors the shell, 16 electromagnets composed of round copper coils generate the toroidal a part of the magnetic subject. These very coils have been mass-produced by PPPL within the Nineteen Sixties, they usually have been a workhorse for fast prototyping in quite a few physics laboratories ever since.
“When it comes to its capability to restrict particles, Muse is 2 orders of magnitude higher than any stellarator beforehand constructed,” says Hammond. “And since it’s the primary working stellarator with quasi-axisymmetry, we can check among the theories we by no means acquired to check on NCSX.”
The neodymium magnets are just a little larger than a button magnet that is perhaps used to carry a photograph to a fridge door. Regardless of their compactness, they pack a outstanding punch. Throughout my go to to PPPL, I turned a pair of magnets in my arms, alternating their polarities, and located it tough to push them collectively and pull them aside.
Graduate college students did the meticulous work of inserting and securing the magnets. “This can be a machine constructed on pizza, mainly,” says Cowley, PPPL’s director. “You may get rather a lot out of graduate college students for those who give them pizza. There might have been beer too, but when there was, I don’t need to learn about it.”
The Muse undertaking was financed by inner R&D funds and used principally off-the-shelf elements. “Having achieved it this manner, I’d by no means select to do it another means,” Zarnstorff says.
Stellarex and Thea Power Advance Stellarator Ideas
Now that Muse has demonstrated that stellarators could be made shortly, cheaply, and extremely precisely, corporations based by present and former PPPL researchers are shifting ahead with Muse-inspired designs.
Zarnstorff not too long ago cofounded an organization known as Stellarex. He says he sees stellarators as the most effective path to fusion power, however he hasn’t landed on a magnet configuration for future machines. “It could be a mix of everlasting and superconducting electromagnets, however we’re not spiritual about anyone specific method; we’re leaving these choices open for now.” The corporate has secured some DOE analysis grants and is now centered on elevating cash from traders.
Thea Energy, a startup led by David Gates, who till not too long ago was the pinnacle of stellarator physics at PPPL, is additional together with its power-plant idea, additionally impressed by Muse. Like Muse, Thea focuses on simplified manufacture and upkeep. Not like Muse, the Thea idea makes use of planar (flat) electromagnetic coils constructed of high-temperature superconductors.
“The concept is to make use of tons of of small electromagnets that behave rather a lot like everlasting magnets, with every making a dipole subject that may be switched on and off,” says Gates. “By utilizing so many individually actuated coils, we are able to get a excessive diploma of management, and we are able to dynamically alter and form the magnetic fields in actual time to optimize efficiency and adapt to totally different circumstances.”
The corporate has raised greater than $23 million and is designing and constructing a half-scale prototype of its preliminary undertaking, which it calls Eos, in Kearny, N.J. “At first, it will likely be centered on producing neutrons and isotopes like tritium,” says Gates. “The know-how is designed to be a stepping stone towards a fusion energy plant known as Helios, with the potential for near-term commercialization.”
Stellarator Startup Leverages Exascale Computing
Of all of the personal stellarator startups, Type One Energy is essentially the most properly funded, having raised $82.5 million from traders that embrace Invoice Gates’s Breakthrough Energy Ventures. Kind One’s leaders contributed to the design and building of each the College of Wisconsin’s Helically Symmetric Experiment and Germany’s Wendelstein 7-X stellarators.
The Kind One stellarator design makes use of a extremely optimized magnetic-field configuration designed to enhance plasma confinement. Optimization can calm down the stringent building tolerances usually required for stellarators, making them simpler and cheaper to engineer and construct.
Kind One’s design, like that of Thea Power’s Eos, makes use of high-temperature superconducting magnets, which offer increased magnetic power, require much less cooling energy, and will decrease prices and permit for a extra compact and environment friendly reactor. The magnets, licensed from MIT, have been designed for a tokamak, however Kind One is modifying the coil construction to accommodate the intricate twists and turns of a stellarator.
In an indication that stellarator analysis could also be shifting from primarily scientific experiments into the race to subject the primary commercially viable reactor, Kind One not too long ago introduced that it’s going to construct “the world’s most superior stellarator” on the Bull Run Fossil Plant in Clinton, Tenn. To assemble what it’s calling Infinity One—anticipated to be operational by early 2029—Kind One is teaming up with the Tennessee Valley Authority and the DOE’s Oak Ridge National Laboratory.
“As an engineering testbed, Infinity One is not going to be producing power,” says Kind One CEO Chris Mowry. “As a substitute, it’s going to enable us to retire any remaining dangers and log out on key options of the fusion pilot plant we’re at the moment designing. As soon as the design validations are full, we are going to start the development of our pilot plant to place fusion electrons on the grid.”
To assist optimize the magnetic-field configuration, Mowry and his colleagues are using Summit, one among Oak Ridge’s state-of-the-art exascale supercomputers. Summit is able to performing greater than 200 million occasions as many operations per second because the supercomputers of the early Nineteen Eighties, when Wendelstein 7-X was first conceptualized.
AI Boosts Fusion Reactor Effectivity
Advances in computational energy are already resulting in sooner design cycles, larger plasma stability, and higher reactor designs. Ten years in the past, an evaluation of one million totally different configurations would have taken months; now a researcher can get solutions in hours.
And but, there are an infinite variety of methods to make any specific magnetic subject. “To seek out our technique to an optimum fusion machine, we might have to contemplate one thing like 10 billion configurations,” says PPPL’s Cowley. “If it takes months to make that evaluation, even with high-performance computing, that’s nonetheless not a path to fusion in a brief period of time.”
Within the hope of shortcutting a few of these steps, PPPL and different labs are investing in synthetic intelligence and utilizing surrogate fashions that may search after which quickly residence in on promising options. “Then, you begin working progressively extra exact fashions, which convey you nearer and nearer to the reply,” Cowley says. “That means we are able to converge on one thing in a helpful period of time.”
However the greatest remaining hurdles for stellarators, and magnetic-confinement fusion generally, contain engineering challenges reasonably than physics challenges, say Cowley and different fusion consultants. These embrace growing supplies that may face up to excessive circumstances, managing warmth and energy effectively, advancing magnet know-how, and integrating all these elements right into a purposeful and scalable reactor.
Over the previous half decade, the vibe at PPPL has grown more and more optimistic, as new buildings go up and new researchers arrive on Stellarator Highway to develop into a part of what will be the grandest scientific problem of the twenty first century: enabling a world powered by secure, plentiful, carbon-free power.
PPPL not too long ago broke floor on a brand new $110 million workplace and laboratory constructing that may home theoretical and computational scientists and assist the work in synthetic intelligence and high-performance computing that’s more and more propelling the search for fusion. The brand new facility can even present house for analysis supporting PPPL’s expanded mission into microelectronics, quantum sensors and units, and sustainability sciences.
PPPL researchers’ quest will take a whole lot of onerous work and, in all probability, a good bit of luck. Stellarator Highway could also be solely a mile lengthy, however the path to success in fusion power will definitely stretch significantly farther.
This text seems within the November 2024 print challenge as “An Off-the- Shelf Stellarator.”
