In area, high-energy gamma radiation can change the properties of semiconductors, altering how they work or rendering them fully unusable. Discovering gadgets that may stand up to radiation is necessary not simply to keep astronauts safe but in addition to make sure that a spacecraft lasts the many years of its mission. Establishing a tool that may simply measure radiation publicity is simply as beneficial. Now, a globe-spanning group of researchers has discovered {that a} kind of memristor, a tool that shops knowledge as resistance even within the absence of an influence provide, can’t solely measure gamma radiation but in addition heal itself after being uncovered to it.
Memristors have demonstrated the flexibility to self-heal below radiation earlier than, says Firman Simanjuntak, a professor of supplies science and engineering on the College of Southampton whose crew developed this memristor. However till lately, nobody actually understood how they healed—or how finest to use the gadgets. Lately, there’s been “a new space race,” he says, with extra satellites in orbit and extra deep-space missions on the launchpad, so “everybody desires to make their gadgets … tolerant in the direction of radiation.” Simanjuntak’s crew has been exploring the properties of several types of memristors since 2019, however now wished to check how their gadgets change when uncovered to blasts of gamma radiation.
Usually, memristors set their resistance in response to their publicity to high-enough voltage. One voltage boosts the resistance, which then stays at that degree when topic to decrease voltages. The alternative voltage decreases the resistance, resetting the system. The relationship between voltage and resistance is dependent upon the earlier voltage, which is why the gadgets are mentioned to have a reminiscence.
The hafnium oxide memristor utilized by Simanjuntak is a sort of memristor that can not be reset, referred to as a WORM (write as soon as, learn many instances) system, appropriate for everlasting storage. As soon as it’s set with a damaging or optimistic voltage, the opposing voltage doesn’t change the system. It consists of a number of layers of fabric: first conductive platinum, then aluminum doped hafnium oxide (an insulator), then a layer of titanium, then a layer of conductive silver on the prime.
When voltage is utilized to those memristors, a bridge of silver ions varieties within the hafnium oxide, which permits the present to move by means of, setting its conductance worth. Not like in different memristors, this system’s silver bridge is secure and fixes in place, which is why as soon as the system is about, it often can’t be returned to a relaxation state.
That’s, until radiation is concerned. The primary discovery the researchers made was that below gamma radiation, the system acts as a resettable swap. They imagine that the gamma rays break the bond between the hafnium and oxygen atoms, inflicting a layer of titanium oxide to kind on the prime of the memristor, and a layer of platinum oxide to kind on the backside. The titanium oxide layer creates an additional barrier for the silver ions to cross, so a weaker bridge is shaped, one that may be damaged and reset by a brand new voltage.

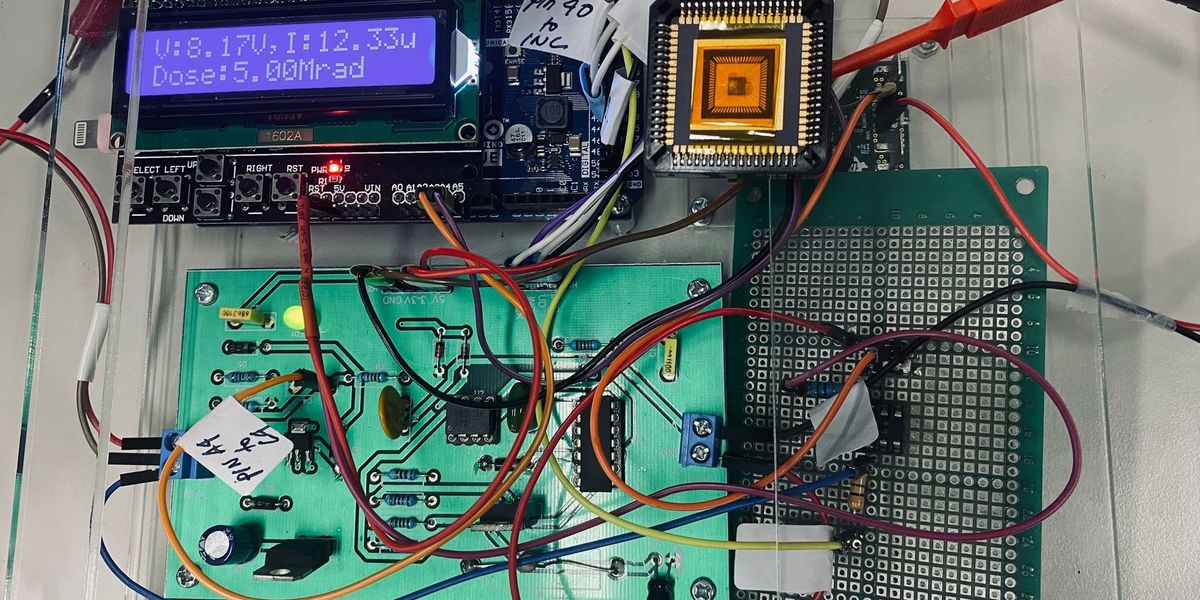

The additional platinum oxide layer brought on by the gamma rays additionally serves as a barrier to incoming electrons. This implies the next voltage is required to set the memristor. Utilizing this information, the researchers have been in a position to create a easy circuit that measured quantities of radiation by checking the voltage that was required to set the memristor. A better voltage meant the system had encountered extra radiation.
From an everyday state, the memristor varieties a secure conductive bridge. Beneath radiation, a thicker layer of titanium oxide creates a slower-forming, weaker conductive bridge.OM Kumar et al./IEEE Electron Machine Letters
However the true marvel of those hafnium oxide memristors is their means to self-heal after a giant dose of radiation. The researchers handled the memristor with 5 megarads of radiation—500 instances greater than a deadly dose in people. As soon as the gamma radiation was eliminated, the titanium oxide and platinum oxide layers regularly dissipated, the oxygen atoms returning to kind hafnium oxide once more. After 30 days, as a substitute of nonetheless requiring a higher-than-normal voltage to kind, the gadgets that have been uncovered to radiation required the identical voltage to kind as untouched gadgets.
“It’s fairly thrilling what they’re doing,” says Pavel Borisov, a researcher at Loughborough College within the UK who research the right way to use memristors to mimic the synapses in the human brain. His crew carried out related experiments with a silicon oxide based mostly memristor, and in addition discovered that radiation modified the habits of the system. In Borisov’s experiments, nonetheless, the memristors didn’t heal after the radiation.
Memristors are easy, light-weight, and low energy, which already makes them superb to be used in area purposes. Sooner or later, Simanjuntak hopes to make use of memristors to develop radiation-proof reminiscence gadgets that will allow satellites in area to do onboard calculations. “You should utilize a memristor for knowledge storage, but in addition you should utilize it for computation,” he says, “So you might make every thing easier, and cut back the prices as effectively.”
This research was accepted for publication in a future problem of Electron Machine Letters.
