A protracted-awaited, rising laptop community element could lastly be having its second. At Nvidia’s GTC occasion final week in San Jose, the corporate introduced that it’s going to produce an optical community change designed to drastically minimize the ability consumption of AI data centers. The system—referred to as a co-packaged optics, or CPO, change—can route tens of terabits per second from computer systems in a single rack to computer systems in one other. On the identical time, startup Micas Networks, introduced that it’s in quantity manufacturing with a CPO change primarily based on Broadcom’s technology.
In information facilities right now, community switches in a rack of computer systems consist of specialised chips electrically linked to optical transceivers that plug into the system. (Connections inside a rack are electrical, however several startups hope to change this.) The pluggable transceivers mix lasers, optical circuits, digital sign processors, and different electronics. They make {an electrical} hyperlink to the change and translate information between digital bits on the change facet and photons that fly by the info heart alongside optical fibers.

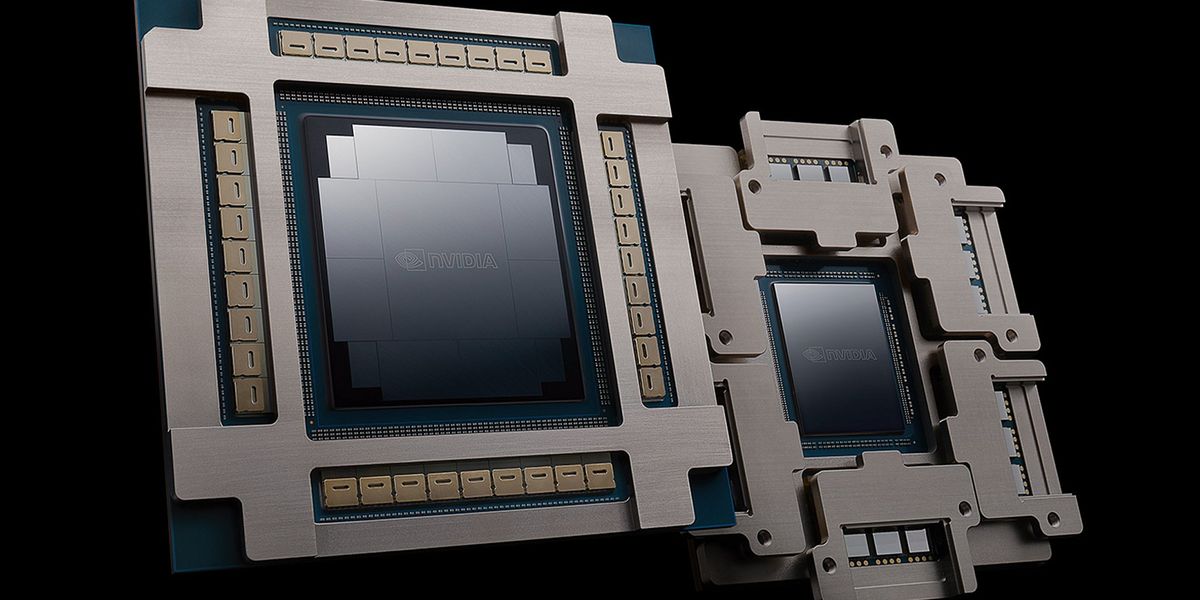

Co-packaged optics is an effort to spice up bandwidth and cut back energy consumption by transferring the optical/electrical information conversion as shut as doable to the change chip. This simplifies the setup and saves energy by decreasing the variety of separate elements wanted and the gap digital alerts should journey. Advanced packaging know-how permits chipmakers to encompass the community chip with a number of silicon optical transceiver chiplets. Optical fibers connect on to the bundle. So, all of the elements are built-in right into a single bundle aside from the lasers, which stay exterior as a result of they’re made utilizing non-silicon supplies and applied sciences. (Even so, CPOs require just one laser for each eight information hyperlinks in Nvidia’s {hardware}.)
“An AI supercomputer with 400,000 GPUs is definitely a 24-megawatt laser.” —Ian Buck, Nvidia
As engaging of a know-how as that appears, its economics have stored it from deployment. “We’ve been ready for CPO eternally,” says Clint Schow, a co-packaged optics professional and IEEE Fellow on the College of California Santa Barbara, who has been researching the technology for 20 years. Talking of Nvidia’s endorsement of know-how, he mentioned the corporate “wouldn’t do it until the time was right here when [GPU-heavy data centers] can’t afford to spend the ability.” The engineering concerned is so complicated, Schow doesn’t suppose it’s worthwhile until “doing issues the previous approach is damaged.”
And certainly, Nvidia pointed to energy consumption in upcoming AI information facilities as a motivation. Pluggable optics devour “a staggering 10 % of the full GPU compute energy” in an AI information heart, says Ian Buck, Nvidia’s vice chairman of hyperscale and high-performance computing. In a 400,000-GPU manufacturing unit that may translate to 40 megawatts, and greater than half of that goes simply to powering the lasers in a pluggable optics transceiver. “An AI supercomputer with 400,000 GPUs is definitely a 24-megawatt laser,” he says.
Optical Modulators
One elementary distinction between Broadcom’s scheme and Nvidia’s is the optical modulator know-how that encodes digital bits onto beams of sunshine. In silicon photonics there are two principal kinds of modulators—Mach-Zender, which Broadcom makes use of and is the premise for pluggable optics, and microring resonator, which Nvidia selected. Within the former, gentle touring by a waveguide is break up into two parallel arms. Every arm can then be modulated by an utilized electric field, which adjustments the part of the sunshine passing by. The arms then rejoin to kind a single waveguide. Relying on whether or not the 2 alerts are actually in part or out of part, they’ll cancel one another out or mix. And so digital bits may be encoded onto the sunshine.
Microring modulators are way more compact. As a substitute of splitting the sunshine alongside two parallel paths, a ring-shaped waveguide hangs off the facet of the sunshine’s principal path. If the sunshine is of a wavelength that may kind a standing wave within the ring, will probably be siphoned off, filtering that wavelength out of the primary waveguide. Precisely which wavelength resonates with the ring is determined by the construction’s refractive index, which may be electronically manipulated.
Nonetheless, the microring’s compactness comes with a price. Microring modulators are delicate to temperature, so each requires a built-in heating circuit, which have to be rigorously managed and consumes energy. However, Mach-Zender units are significantly bigger, resulting in extra misplaced gentle and a few design points, says Schow.
That Nvidia managed to commercialize a microring-based silicon photonics engine is “a tremendous engineering feat,” says Schow.
Nvidia CPO Switches
Based on Nvidia, adopting the CPO switches in a brand new AI information heart would result in one-fourth the variety of lasers, enhance power efficiency for trafficking information 3.5-fold, enhance the reliability of alerts making it from one laptop to a different on time by 63-times, make networks 10-fold extra resilient to disruptions, and permit prospects to deploy new information heart {hardware} 30 % sooner.
“By integrating silicon photonics instantly into switches, Nvidia is shattering the previous limitation of hyperscale and enterprise networks and opening the gate to million-GPU AI factories,” mentioned Nvidia CEO Jensen Huang.
The corporate plans two lessons of change, Spectrum-X and Quantum-X. Quantum-X, which the corporate says might be out there later this yr, is predicated on Infiniband community know-how, a community scheme extra oriented to high-performance computing. It delivers 800 Gb/s from every of 144 ports, and its two CPO chips are liquid-cooled as a substitute of air-cooled, as are an rising fraction of latest AI information facilities. The community ASIC contains Nvidia’s SHARP FP8 know-how, which permits CPUs and GPUs to dump sure duties to the community chip.
Spectrum-X is an Ethernet-based change that may ship a complete bandwidth of about 100 terabits per second from a complete of both 128 or 512 ports and 400 Tb/s from 512 or 2048 ports. {Hardware} makers are anticipated to have Spectrum-X switches prepared in 2026.
Nvidia has been engaged on the elemental photonics know-how for years. However it took collaboration with 11 companions—together with TSMC, Corning, and Foxconn—to get the change to a industrial state.
Ashkan Seyedi, director of optical interconnect merchandise at Nvidia, confused how necessary it was that the applied sciences these companions delivered to the desk have been co-optimized to fulfill AI information heart wants reasonably than merely assembled from these companions’ current applied sciences.
“The improvements and the ability financial savings enabled by CPO are intimately tied to your packaging scheme, your packaging companions, your packaging movement,” Seyedi says. “The novelty isn’t just within the optical elements instantly, it’s in how they’re packaged in a high-yield, testable approach that you could handle at good price.”
Testing is especially necessary, as a result of the system is an integration of so many costly elements. For instance, there are 18 silicon photonics chiplets in every of the 2 CPOs within the Quantum-X system. And every of these should join to 2 lasers and 16 optical fibers. Seyedi says the group needed to develop a number of new check procedures to get it proper and hint the place errors have been creeping in.
Micas Networks Switches
Micas Networks is already in manufacturing with a change primarily based on Broadcom’s CPO know-how.Micas Community
Broadcom selected the extra established Mach-Zender modulators for its Bailly CPO switch, partially as a result of it’s a extra standardized know-how, probably making it simpler to combine with current pluggable transceiver infrastructure, explains Robert Hannah, senior supervisor of product advertising in Broadcom’s optical methods division.
Micas’ system makes use of a single CPO element, which is made up of Broadcom’s Tomahawk 5 Ethernet change chip surrounded by eight 6.4 Tb/s silicon photonics optical engines. The air-cooled {hardware} is in full manufacturing now, placing it forward of Nvidia’s CPO switches.
Hannah calls Nvidia’s involvement an endorsement of Micas’ and Broadcom’s timing. “A number of years in the past, we made the choice to skate to the place the puck was going to be,” says Mitch Galbraith, Micas’ chief operations officer. With information heart operators scrambling to energy their infrastructure, CPO’s time appears to have come, he says.
The brand new change guarantees a 40 % energy financial savings versus methods populated with customary pluggable transceivers. Nonetheless, Charlie Hou, vice chairman of company technique at Micas, says CPO’s increased reliability is simply as necessary. “Link flap,” the time period for transient failure of pluggable optical hyperlinks, is among the culprits liable for lengthening already-very-long AI coaching runs, he says. CPO is predicted to have much less hyperlink flap as a result of there are fewer elements within the sign’s path, amongst different causes.
CPOs within the Future
The large energy saving information facilities want to get from CPO is usually a one-time profit, Schow suggests. After that, “I feel it’s simply going to be the brand new regular.” Nonetheless, enhancements to the electronics’ different options will let CPO makers maintain boosting bandwidth—for a time no less than.
Schow doubts particular person silicon modulators—which run at 200 Gb/s in Nvidia’s photonic engines—will be capable of go previous way more than 400 Gb/s. Nonetheless, different supplies, reminiscent of lithium niobate and indium phosphide ought to be capable of exceed that. The trick might be affordably integrating them with silicon elements, one thing Santa Barbara-based OpenLight is engaged on, amongst other groups.
Within the meantime, pluggable optics aren’t standing nonetheless. This week, Broadcom unveiled a brand new digital signal processor that might result in a greater than 20 % energy discount for 1.6 Tb/s transceivers, due partially to a extra superior silicon course of.
And startups reminiscent of Avicena, Ayar Labs, and Lightmatter are working to convey optical interconnects all the best way to the GPU itself. The previous two have developed chiplets meant to go inside the identical bundle as a GPU or different processor. Lightmatter goes a step farther, making the silicon photonics engine the packaging substrate upon which future chips are 3D-stacked.
