Wielding a shiny chrome scoop, Michael Rosenthal leans over and digs into the powder in a half-filled 55-gallon drum. He holds up the inside track and takes a pinch in his fingers and smooshes it to indicate me the feel. It’s like talc, but it surely’s an odd, stunning shade of pale green-gray. On cabinets throughout us are large white luggage of the stuff, every weighing a metric ton.
The truth that this specific powder exists in any respect is principally a miracle. That’s the inescapable conclusion for me at this level after a form of impromptu, peripatetic mini-seminar performed by Rosenthal right here in
Mountain Pass, Calif., close to the Nevada border. Rosenthal is cofounder and chief working officer of MP Materials, the one firm in North America that’s mining uncommon earth ore and—that is the essential half—extracting from it giant portions of industrially helpful rare earth compounds.
The powder he’s displaying me is a combination of pure
rare earth oxides, principally neodymium with some praseodymium. It’s the important thing ingredient in numerous essential processes and merchandise in semiconductor manufacturing, electro-optical methods, chemical catalysis, and, most notably, highly effective everlasting magnets. These are the magnets that go into practically all motors for electric vehicles and into climate-control methods, home equipment, and instruments, into the mills utilized in wind generators, and into the a whole bunch of tens of millions of headphones and loudspeakers offered every year.
For the previous couple of hours, because the temperature climbed towards 43 °C (110 °F), I’ve been traipsing with Rosenthal round

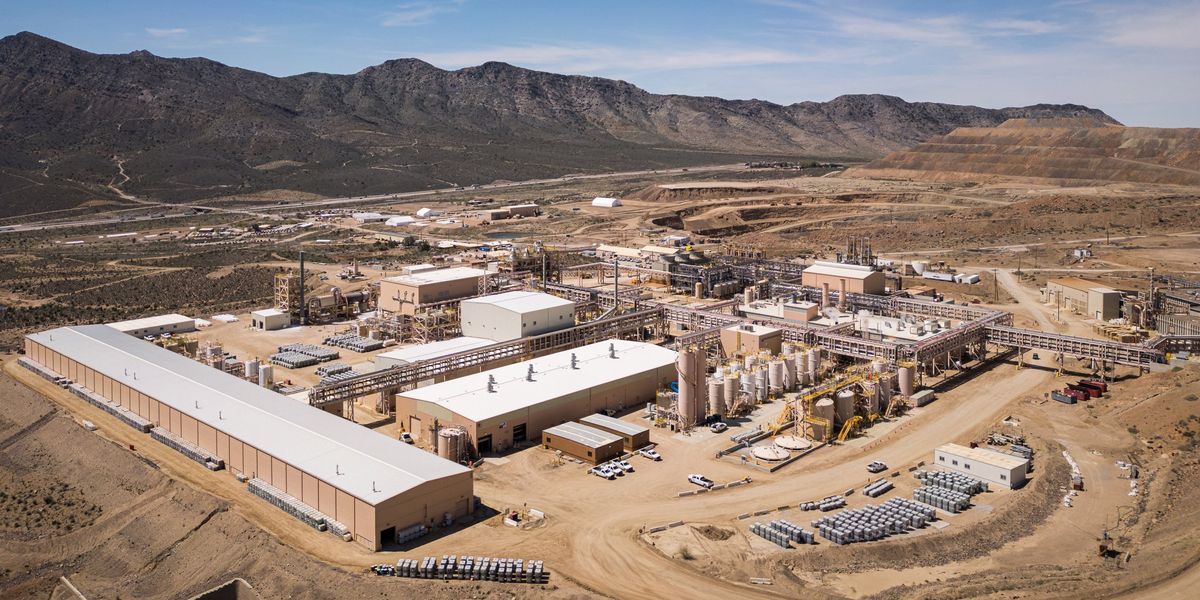

MP’s open-pit mine and sprawling processing amenities within the northeastern Mojave Desert. Earlier, as we stood on the sting of the huge mine pit, Rosenthal identified within the partitions of sunshine grayish “nation rock” far under us the seams of brownish and reddish rock, which include the uncommon earth ores. “There’s been uncommon earth mining right here since 1952,” he mentioned. “We expect we’ve bought at the very least one other 30 years to go.”
That’s a comforting thought to authorities officers and tech executives in Europe, North America, Japan, and Korea, which have launched sprawling applications to supply the very important parts in the US, Australia, and Canada. The efforts are aimed toward making certain a provide of essential uncommon earths within the occasion that China—which produces
roughly 90 percent of processed, industry-ready uncommon earths—decides to limit their export. Now, after greater than a decade of effort, and after billions of {dollars} spent by personal corporations in addition to the U.S. and different governments, 2025 might be a yr when some outcomes of all this cash and exercise ought to develop into conspicuous.
“The observe document of success on this {industry} is abysmal.”
—Michael Rosenthal, cofounder, MP Supplies
MP Supplies, for instance, expects to extend manufacturing this yr of its neodymium praseodymium product, whereas additionally finishing a facility to supply completed, high-quality everlasting magnets close to Fort Price, Texas. In the meantime, MP’s solely giant competitor exterior of China,
Lynas Rare Earths of Perth, Australia, expects to start work on a mammoth uncommon earth–processing facility being inbuilt Seadrift, Texas with US $258 million from the U.S. Division of Protection (DOD).
However each bit as doubtlessly transformative as these large, publicized initiatives is one hardly recognized in any respect, even throughout the small group of uncommon earth buyers, builders, and researchers. This yr, researchers at Oak Ridge Nationwide Laboratory will function and analyze a pilot line based mostly on a brand new chemical-extraction methodology, invented by chemist
Santa Jansone-Popova. It seems able to decreasing the solvents, water, and vitality wanted to extract uncommon earths by as a lot as 60 % as compared with the usual extraction course of. Such a technological advance might ultimately show indispensable for U.S., Australian, and different corporations struggling to compete in opposition to the Chinese language uncommon earth juggernaut, which operates scores of processing amenities, and is much less constrained by environmental laws.
The Uncommon Earths Enterprise Defies Categorization
There’s just about nothing simple in regards to the uncommon earths {industry}. It’s a technology-based business endeavor upon which many different international, essential, cutting-edge industries rely. It additionally occurs to be on the sizzling nexus of geopolitics and protection. And it’s an {industry} with an traditionally checkered environmental document that’s now pivotal to a few of the largest and fastest-growing industries aimed toward mitigating climate change.
The unease over China’s dominance of uncommon earth manufacturing spiked final December, when China introduced it will
begin banning the export to the US of sure essential supplies. Notably, the ban doesn’t embrace uncommon earths, however the prohibition evoked a 2010 incident wherein China briefly minimize all uncommon earth gross sales to Japan after a fishing dispute. Three years later, a report from the U.S. Congressional Analysis Service created a furor by mentioning that every F-35 Lightning II fighter jet contained 414 kilograms (about 920 kilos) of uncommon earth supplies.
Fairly quickly, the cash started gushing. It got here from U.S. companies, notably
the DOD, in addition to others in Japan and Korea and from personal buyers. Scores of corporations and ventures sprang up—eventually depend, more than 146 giant uncommon earth initiatives have been underway, of which at the very least 96 have been in North America, Australia, Europe, and South America.
In the US, most efforts concentrate on self sufficiency. However the street from right here to there’s going to be fairly tough. “Making uncommon earths is actually, actually laborious,” says Rosenthal. “It’s very costly, you want quite a lot of tools, and the observe document of success on this {industry} is abysmal.”
So, not surprisingly, nearly all of these 146 large uncommon earth initiatives are mining ventures, not processing ones, they usually’ll do little or no to diversify the uncommon earth provide. “It’s essential that now we have a extra numerous provide chain, exterior of China, and an even bigger one,” agrees Rosenthal. “However the {industry} is poorly served by the quantity of hype and unjustifiable press relating to assets (exploratory mine websites) that aren’t nicely understood. What we actually want extra of is processing capabilities, from all elements of the provision chain.” A brand new uncommon earth mine, Rosenthal factors out, does nothing to extend the geographical variety of provide if its output should go to China to be processed into uncommon earth oxides.
Neodymium-bearing uncommon earth compounds, resembling this neodymium praseodymium oxide powder produced by MP Supplies at its Mountain Cross web site, are of immense industrial, navy, and business significance.MP Supplies
As we speak, such preparations are widespread. China’s dominance of uncommon earth processing is such that even MP Supplies Corp., the dad or mum firm that controls the Mountain Cross mining and processing operations, sends a few of its ore to China for processing. And a Chinese language firm, Shenghe Assets Holding Co., owns roughly 7.7 % of the inventory of MP Supplies.
“China has constructed at the very least 50 uncommon earth separation crops within the final 10 years,” Rosenthal estimates. For comparability, exterior of China, there are solely three separation amenities able to producing uncommon earth oxides at industrial scale. One is Mountain Cross; one other is the Silmet manufacturing facility in Sillamäe, Estonia, which is owned by Toronto-based Neo Efficiency Supplies; and the third is the large
Lynas advanced materials plant, close to Kuantan in Malaysia. (One other Lynas facility, in Kalgoorlie, Australia, produces a combination of uncommon earth carbonates that may be was industrially helpful oxides at buyer websites.)
Redistributing Refining
Refining uncommon earth ore into uncommon earth oxides begins with a course of referred to as
beneficiation within the {industry}. Right here, the rocks are first damaged down into chunks of gravel which might be then combined with water and crushed right into a slurry. Then, within the comparatively environmentally pleasant course of used at Mountain Cross, referred to as froth flotation, a sort of chemical reagent referred to as a surfactant is added to the slurry. This combination is launched right into a collection of vessels, or cells, wherein the surfactants trigger the uncommon earth–bearing grains to bind selectively to bubbles floating to the highest of the cells. Because the bubbles float upwards, they carry the uncommon earth–bearing grains with them, separating them from the waste grains. After a number of levels, what’s left after drying is a high quality powder referred to as uncommon earth focus. The objective is for this focus to be at the very least 60 % uncommon earth oxides by weight.
The subsequent step is named leaching. At Mountain Cross, the focus is roasted after which leached with hydrochloric acid to place the high-value uncommon earth parts into answer. A lot of the cerium, a low-value uncommon earth, is eliminated on this stage.
Luggage of neodymium praseodymium oxide powder, every containing one metric tonne of the compound, await transport from a warehouse on the Mountain Cross web site in California.Michael Tessler/MP Supplies
The subsequent stage is essentially the most difficult and essential. Right here, the precise uncommon earth parts being sought, for instance neodymium and praseodymium, are separated from the opposite uncommon earths. The usual approach is named
solvent extraction, and it isn’t a lot totally different from the method invented 70 years in the past by researchers at Argonne National Laboratory and Oak Ridge National Laboratory.
The tactic is named liquid-liquid as a result of it makes use of two immiscible solvents, one water- and the opposite oil-based. The uncommon earths are dissolved in one of many solvents, which is combined vigorously with the opposite one. To separate out particular uncommon earths, the method makes use of an natural extractant and exploits refined variations within the affinity of that extractant for various uncommon earth parts below specific course of situations.
Right here’s the way it works. There’s a water-based, acidic answer containing the uncommon earths, which is named the aqueous section. It’s combined with an oil-based, or natural, section, consisting of that natural extractant and a diluent. Technicians modify the method situations, resembling temperature and strain, to permit the extractant to bind preferentially to the precise uncommon earth ions to be recovered, say neodymium. When the aqueous section and the natural section are combined vigorously, these neodymium ions bind to the extractant, which pulls them into the natural section. As a result of this oil-based section isn’t miscible with the aqueous one, the neodymium ions are separated from the others. In observe, the vigorous combining happens in vessels referred to as mixers, after which the mixed liquids are pushed into an adjoining container referred to as a settler, the place the 2 phases slowly separate, with the goal uncommon earths accumulating within the natural section and the less-desired uncommon earths being scrubbed again into the aqueous section.
This mixing and settling occurs over and over. Every time the focus of the specified uncommon earths is elevated incrementally. After many iterations, the goal uncommon earths are then usually transferred again to the aqueous section. Then they’re recovered by way of a precipitation approach.
If all of it sounds fairly simple, it’s not. At Mountain Cross, Rosenthal takes me into the constructing, bigger than a soccer subject, the place the extraction takes place. I’ve toured loads of imposing industrial and technological websites, however I’ve by no means seen something fairly like this. After my eyes modify to the dim gentle, I see columns of big, paired vessels, towering over me, off into the gap. They’re every about 20 cubic meters (roughly 5,000 gallons), and there are at the very least 100 of them (the precise quantity is a commerce secret, I’m instructed). These are the mixers and settlers.
How Oak Ridge Reinvented Uncommon Earth Extraction
Correctly tuned, the liquid-liquid solvent-extraction course of will be extraordinarily efficient, producing uncommon earth oxides with purity better than 99.9 %. However it has some substantial drawbacks. Within the course of, the natural section is a phosphate-based compound, resembling tributyl phosphate, and the aqueous section is a powerful acid, resembling hydrochloric, nitric, or sulfuric. These solvents and reagents are utilized in monumental portions, which will be recycled however should all be disposed of ultimately.
A number of analysis now could be aimed toward
identifying better extractants—for instance, ones that allow much less acidic processes or that chemically bind extra selectively with the specified uncommon earths. A measure of the effectiveness of an extractant is separation issue, which signifies how a lot of the goal uncommon earth component is pulled from answer relative to adjoining uncommon earths as they undergo one spherical of mixer-settlers. For the traditional system right now, the separation components of adjoining uncommon earths range between 1.1 and about 6. For comparability, separation components for different chemical-industrial processes can exceed 100.
“If you happen to can double or triple the separation issue, then you may halve or scale back the variety of mixer-settlers by as much as two-thirds,” says Tom Lograsso, director of a U.S. government-led consortium referred to as the
Critical Materials Innovation Hub, which is sponsoring analysis on the issue. “If there was a panacea to cut back the prices, the capital prices, the land utilization, the water utilization, and enhance the environmental soundness of the processing, it will be to provide you with chemical compounds which might be environmentally secure, and that may additionally do a greater job of separating the uncommon earths from one another.”
Analysis chemist Santa Jansone-Popova, at Oak Ridge Nationwide Laboratory, invented the DGA-6 chemical that might revolutionize uncommon earth extraction.Carlos Jones/ORNL/U.S. Division of Vitality
At Oak Ridge, the challenge led by Jansone-Popova, with funding from the Crucial Supplies Innovation hub, is doing precisely that. Jansone-Popova notes that with the traditional course of, the options develop into extra acidic as they proceed by successive levels of mixer-settlers.
“With a view to get better these uncommon earth parts in that oil-aqueous separation system,” she explains, “it’s important to use extra concentrated aqueous answer—extra acidic answer,” she notes. That, in flip, she provides, requires the usage of alkali to decrease the acidity of that answer, in order that the aqueous stream will be recycled. “Which means including extra chemical compounds to the system, which isn’t ultimate, and which, on the finish, ends in producing extra waste, producing environmental considerations,” she says.
Her answer? Use an extractant that doesn’t function based mostly on changes in acidity. “It operates by a distinct mechanism, changes in ionic energy,” says Jansone-Popova. “Which means we are able to begin with a extra concentrated acid answer, after which we are able to recycle that acid answer with out including any chemical compounds. And after we need to get better these uncommon earth parts, we’re utilizing a really dilute acidic answer that, too, will be recycled after the precipitation of the uncommon earths. We are able to principally get better these uncommon earth parts with water. There are not any extra chemical compounds added to the system, and all of the acid that we’re utilizing within the course of will be recycled. That’s the wonder.”
And it’s not even
all the wonder. The brand new extractants are additionally way more selective, enhancing the separation issue by two to 3 instances as compared with the present processes.
A brand new high-efficiency course of for extracting particular uncommon earth parts was pioneered at Oak Ridge Nationwide Laboratory. The method will depend on a chemical, diglycolamide-6 (DGA-6) [in beaker above] which is now being manufactured by Marshallton Analysis Labs.Carlos Jones/ORNL/U.S. Division of Vitality
The brand new extractant is from a chemical household referred to as diglycolamides, or DGAs. Jansone-Popova refers back to the one her group is at present growing as DGA-6. It’s used within the oil section, and one other new extractant, additionally developed by her group, is used within the aqueous section. “Our objective is to do the circulate sheet demonstrations and to persuade {industry} that this can be a higher course of,” she declares.
She already has one convert in {industry}. Mac Foster is co-owner of
Marshallton Research Laboratories, which supplies chemical compounds for extraction processes within the nuclear and uncommon earth industries. He’s been collaborating with Jansone-Popova, and he likes what he sees. “In comparison with the state-of-the-art [traditional-process extractants], this new class of DGAs is far cleaner in its operation as a result of these extractants are impartial,” he says. “They’re not acids. In order that they don’t require large swings involving neutralization of enormous quantities of acid. They’re extra environment friendly.”
Marshallton, which has a license to fabricate DGA-6, has been making comparatively small portions of it for analysis and testing at Oak Ridge. The corporate has additionally been offering recommendation on commercialization to Jansone-Popova’s group. “Now we have improved the manufacturing course of for DGA-6,” Foster provides. “By that, I imply what we’re doing isn’t within the literature. And it results in a decrease price to make the extractant. It’s higher fitted to scaling up.”
Again at Mountain Cross, I ask Rosenthal in regards to the Oak Ridge work. He likes what he’s heard to this point. “If the Oak Ridge extractant is extra selective, we wouldn’t want as many tanks,” he notes.
Over the long run, Western uncommon earth producers are going to wish one thing extraordinary to bolster their efforts to compete with their Chinese language counterparts—who’re additionally pursuing diglycolamides as
extractants for rare earth processing. If it isn’t the Oak Ridge course of it’ll must be one thing very very like it. And the earlier the higher.
