On the shores of Lake Geneva in Switzerland, École Polytechnique Fédérale de Lausanne is residence to many roboticists. It’s additionally residence to many birds, which spend the vast majority of their time doing chook issues. With a couple of exceptions, these chook issues aren’t really flying: Flying is a variety of work, and lots of birds have found out that they will as a substitute simply stroll round on the bottom, the place all of the meals tends to be, and never tire themselves out by having to get airborne time and again.
“Every time I encountered crows on the EPFL campus, I’d observe how they walked, hopped over or jumped on obstacles, and jumped for take-offs,” says Received Dong Shin, a doctoral pupil at EPFL’s Laboratory of Intelligent Systems. “What I constantly noticed was that they at all times jumped to provoke flight, even in conditions the place they might have used solely their wings.”
Shin is first creator on a paper revealed right this moment in Nature that explores each why birds soar to take off, and the way that may be beneficially utilized to fixed-wing drones, which in any other case want issues like runways or catapults to get themselves off the bottom. Shin’s RAVEN (Robotic Avian-inspired Car for a number of ENvironments) drone, with its bird-inspired legs, can do leaping takeoffs similar to crows do, and might use those self same legs to get round on the bottom fairly nicely, too.

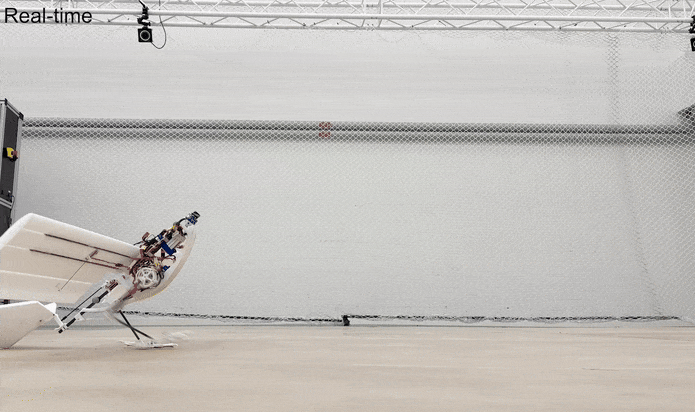

The drone’s bird-inspired legs adopted some key rules of organic design like the flexibility to retailer and launch vitality in tendon-like springs together with some versatile toes.EPFL
Again in 2019, we wrote about a South African startup called Passerine which had an analogous thought, albeit extra targeted on utilizing legs to launch fixed-wing cargo drones into the air. That is an interesting functionality for drones, as a result of it means you can make the most of the vary and endurance that you simply get with a set wing with out having to resort to inefficient tips like stapling a bunch of additional propellers to your self to get off the bottom. “The idea of incorporating leaping take-off right into a fixed-wing car is the frequent thought shared by each RAVEN and Passerine,” says Shin. “The important thing distinction lies of their focus: Passerine targeting a mechanism solely for leaping, whereas RAVEN targeted on multifunctional legs.”
Bio-inspired Design for Drones
Multifunctional legs carry RAVEN a lot nearer to birds, and though these mechanical legs are usually not almost as complicated and succesful as precise chook legs, adopting some key rules of organic design (like the flexibility to retailer and launch vitality in tendon-like springs together with some versatile toes) permits RAVEN to get round in a really bird-like means.
EPFL
Regardless of its identify, RAVEN is roughly the scale of a crow, with a wingspan of 100 centimeters and a physique size of fifty cm. It may stroll a meter in slightly below 4 seconds, jump over 12 cm gaps, and soar into the highest of a 26 cm impediment. For the leaping takeoff, RAVEN’s legs propel the drone to a beginning altitude of almost half a meter, with a ahead velocity of two.2 m/s.
RAVEN’s toes are notably attention-grabbing, particularly after you see how onerous the poor robotic faceplants with out them:
With out toes, RAVEN face-plants when it tries to stroll.EPFL
“It was necessary to include a passive elastic toe joint to allow a number of gait patterns and be sure that RAVEN may soar on the appropriate angle for takeoff,” Shin explains. Most bipedal robots have actuated ft that enable for direct management for foot angles, however for a robotic that flies, you’ll be able to’t simply go including actuators all over willy-nilly as a result of they weigh an excessive amount of. As it’s, RAVEN’s a 620-gram drone of which a full 230 grams consists of ft and toes and actuators and whatnot.
Actuated hip and ankle joints kind a simplified however nonetheless birdlike leg, whereas springs within the ankle and toe joints assist to soak up pressure and retailer vitality.EPFL
Why Add Legs to a Drone?
So the query is, is all of this additional weight and complexity of including legs really price it? In a single sense, it positively is, as a result of the robotic can do issues that it couldn’t do earlier than—strolling round on the bottom and taking off from the bottom by itself. Nevertheless it seems that RAVEN is gentle sufficient, and has a sufficiently highly effective sufficient motor, that so long as it’s propped up on the proper angle, it will probably take off from the bottom with out leaping in any respect. In different phrases, when you changed the legs with a few popsicle sticks simply to tilt the drone’s nostril up, would that work simply as nicely for the bottom takeoffs?
The researchers examined this, and located that non-jumping takeoffs had been crappy. The combination of excessive angle of assault and low takeoff pace led to very unstable flight—it labored, however barely. Leaping, however, finally ends up being about ten instances extra vitality environment friendly general than a standing takeoff. Because the paper summarizes, “though leaping take-off requires barely greater vitality enter, it’s the most energy-efficient and quickest technique to transform actuation vitality to kinetic and potential energies for flight.” And similar to birds, RAVEN also can make the most of its legs to maneuver on the bottom in a way more vitality environment friendly means relative to creating repeated brief flights.
Received Dong Shin holds the RAVEN drone.EPFL
Can This Design Scale As much as Bigger Fastened-Wing Drones?
Birds use their legs for all types of stuff apart from strolling and hopping and leaping, after all, and Received Dong Shin hopes that RAVEN could possibly do extra with its legs, too. The apparent one is utilizing legs for touchdown: “Birds use their legs to decelerate and cut back affect, and this similar precept could possibly be utilized to RAVEN’s legs,” Shin says, though the drone would want a notion system that it doesn’t but must plan issues out. There’s additionally swimming, perching, and snatching, all of which might require a brand new foot design.
We additionally requested Shin about what it could take to scale this design up, to maybe carry a helpful payload sooner or later. Shin factors out that past a sure measurement, birds are not in a position to do leaping takeoffs, and both have to leap off one thing greater up or discover themselves a runway. In truth, some birds will go to astonishing lengths not to must do leaping takeoffs, as finest human of all time David Attenborough explains:
BBC
Shin factors out that it’s often simpler to scale engineered programs than organic ones, and he appears optimistic that legs for leaping takeoffs will probably be viable on bigger fixed-wing drones that could possibly be used for supply. A imaginative and prescient system that could possibly be used for each impediment avoidance and touchdown is within the works, as are wings that may fold to permit the drone to cross by slender gaps. In the end, Shin says that he needs to make the drone as bird-like as doable: “I’m additionally eager to include flapping wings into RAVEN. This enhancement would allow extra bird-like movement and produce extra attention-grabbing analysis inquiries to discover.”
“Fast ground-to-air transition with avian-inspired multifunctional legs,” by Received Dong Shin, Hoang-Vu Phan, Monica A. Daley, Auke J. Ijspeert, and Dario Floreano from EPFL in Switzerland and UC Irvine, seems within the December 4 situation of Nature.
