The way forward for human habitation within the sea is taking form in an deserted quarry on the border of Wales and England. There, the ocean-exploration group Deep has launched into a multiyear quest to allow scientists to reside on the seafloor at depths as much as 200 meters for weeks, months, and probably even years.
“Aquarius Reef Base in St. Croix was the final put in habitat
back in 1987, and there hasn’t been a lot floor damaged in about 40 years,” says Kirk Krack, human diver efficiency lead at Deep. “We’re attempting to carry ocean science and engineering into the twenty first century.”
Deep’s agenda has a significant milestone this 12 months—the event and testing of a small, modular habitat known as Vanguard. This transportable, pressurized underwater shelter, able to housing as much as three divers for intervals ranging as much as every week or so, shall be a stepping stone to a extra everlasting modular habitat system—referred to as Sentinel—that’s set to launch in 2027. “By 2030, we hope to see a everlasting human presence within the ocean,” says Krack. All of that is now attainable due to a sophisticated 3D printing-welding method that may print these giant habitation constructions.
How would such a presence profit marine science? Krack runs the numbers for me: “With present diving at 150 to 200 meters, you possibly can solely get 10 minutes of labor accomplished, adopted by 6 hours of
decompression. With our underwater habitats we’ll have the ability to do seven years’ price of labor in 30 days with shorter decompression time. Greater than 90 p.c of the ocean’s biodiversity lives within 200 meters’ depth and on the shorelines, and we solely learn about 20 p.c of it.” Understanding these undersea ecosystems and environments is a vital piece of the local weather puzzle, he provides: The oceans soak up nearly a quarter of human-caused carbon dioxide and roughly 90 p.c of the surplus warmth generated by human activity.
Underwater Residing Will get the Inexperienced Mild This Yr
Deep is seeking to construct an underwater life-support infrastructure that options not simply modular habitats but additionally coaching applications for the scientists who will use them. Lengthy-term habitation underwater includes a specialised sort of exercise known as
saturation diving, so named as a result of the diver’s tissues grow to be saturated with gases, comparable to nitrogen or helium. It has been used for many years within the offshore oil and gasoline sectors however is unusual in scientific diving, outdoors of the comparatively small variety of researchers lucky sufficient to have spent time in Aquarius. Deep needs to make it an ordinary follow for undersea researchers.
The primary rung in that ladder is Vanguard, a quickly deployable, expedition-style underwater habitat the dimensions of a transport container that may be transported and equipped by a ship and home three folks all the way down to depths of about 100 meters. It’s set to be examined in a
quarry outside of Chepstow, Wales, within the first quarter of 2025.
The Vanguard habitat, seen right here in an illustrator’s rendering, shall be sufficiently small to be transportable and but able to supporting three folks at a most depth of 100 meters.Deep
The plan is to have the ability to deploy Vanguard wherever it’s wanted for every week or so. Divers will have the ability to work for hours on the seabed earlier than retiring to the module for meals and relaxation.
One of many novel options of Vanguard is its extraordinary flexibility in the case of energy. There are presently three choices: When deployed near shore, it could actually join by cable to an onshore distribution heart utilizing native
renewables. Farther out at sea, it might use provide from floating renewable-energy farms and gas cells that may feed Vanguard by way of an umbilical hyperlink, or it may very well be equipped by an underwater energy-storage system that comprises a number of batteries that may be charged, retrieved, and redeployed by way of subsea cables.
The respiration gases shall be housed in exterior tanks on the seabed and include a mixture of oxygen and helium that may rely upon the depth. Within the occasion of an emergency, saturated divers gained’t have the ability to swim to the floor with out struggling a life-threatening case of decompression sickness. So, Vanguard, in addition to the long run Sentinel, can even have backup energy enough to supply 96 hours of life help, in an exterior, adjoining pod on the seafloor.

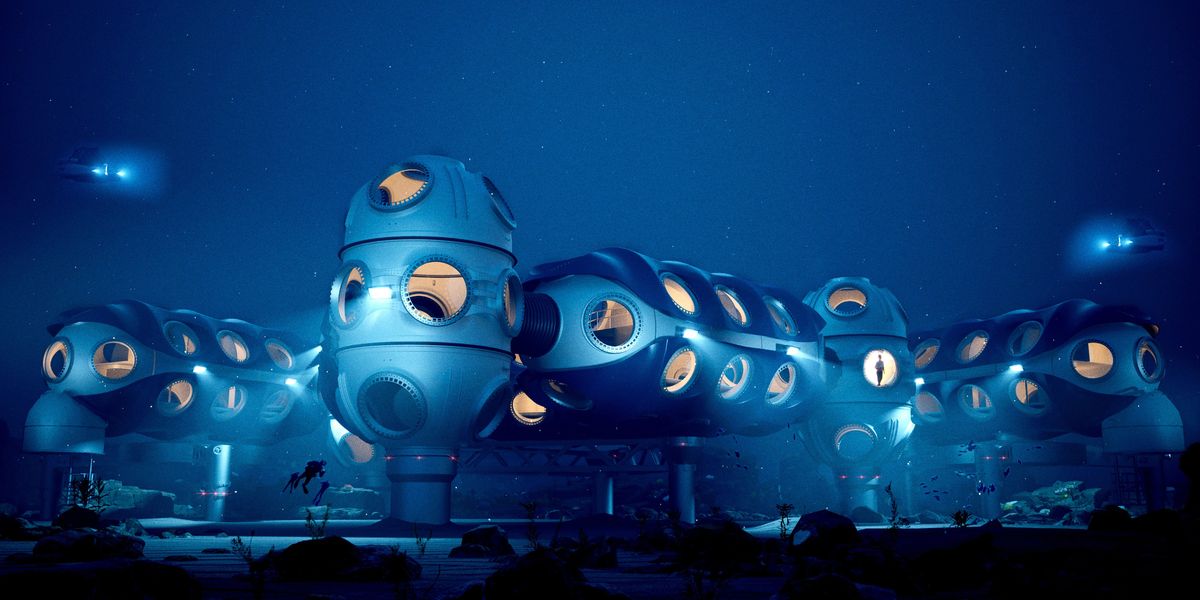

Information gathered from Vanguard this 12 months will assist pave the best way for Sentinel, which shall be made up of pods of various sizes and capabilities. These pods will even be able to being set to completely different inner pressures, in order that completely different sections can carry out completely different features. For instance, the labs may very well be on the native bathymetric strain for analyzing samples of their pure surroundings, however alongside these a 1-atmosphere chamber may very well be arrange the place submersibles might dock and guests might observe the habitat without having to equalize with the native strain.
As Deep sees it, a typical configuration would home six folks—every with their very own bed room and toilet. It could even have a collection of scientific tools together with full moist labs to carry out genetic analyses, saving days by not having to move samples to a topside lab for evaluation.
“By 2030, we hope to see a everlasting human presence within the ocean,” says one of many undertaking’s principals
A Sentinel configuration is designed to go for a month earlier than needing a resupply. Gases shall be topped off by way of an umbilical hyperlink from a floor buoy, and meals, water, and different provides can be introduced down throughout deliberate crew modifications each 28 days.
However folks will have the ability to reside in Sentinel for months, if not years. “When you’re saturated, it doesn’t matter if you happen to’re there for six days or six years, however most individuals shall be there for 28 days attributable to crew modifications,” says Krack.
The place 3D Printing and Welding Meet
It’s a really bold imaginative and prescient, and Deep has concluded that it may be achieved solely with
advanced manufacturing strategies. Deep’s manufacturing arm, Deep Manufacturing Labs (DML), has give you an revolutionary method for constructing the strain hulls of the habitat modules. It’s utilizing robots to mix metallic additive manufacturing with welding in a course of referred to as wire-arc additive manufacturing. With these robots, metallic layers are constructed up as they’d be in 3D printing, however the layers are fused collectively by way of welding utilizing a metal-inert-gas torch.
At Deep’s base of operations at a former quarry in Tidenham, England, assets embrace two Triton 3300/3 MK II submarines. One in every of them is seen right here at Deep’s floating “island” dock within the quarry. Deep
Throughout a tour of the DML, Harry Thompson, superior manufacturing engineering lead, says, “We sit in a grey space between welding and additive course of, so we’re following welding guidelines, however for strain vessels we [also] comply with a stress-relieving course of that’s relevant for an additive part. We’re additionally testing all of the components with nondestructive testing.”
Every of the robotic arms has an working vary of two.8 by 3.2 meters, however DML has boosted this space via an idea it calls Hexbot. It’s based mostly on six robotic arms programmed to work in unison to create habitat hulls with a diameter of as much as 6.1 meters. The most important problem with creating the hulls is managing the warmth in the course of the additive course of to maintain the components from deforming as they’re created. For this, DML is counting on using heat-tolerant steels and on very exactly optimized course of parameters.
Engineering Challenges for Lengthy-Time period Habitation
In addition to manufacturing, there are different challenges which can be distinctive to the tough enterprise of preserving folks glad and alive 200 meters underwater. One of the vital fascinating of those revolves round helium. Due to its
narcotic effect at excessive strain, nitrogen shouldn’t be breathed by people at depths under about 60 meters. So, at 200 meters, the respiration combine within the habitat shall be 2 p.c oxygen and 98 p.c helium. However due to its very excessive thermal conductivity, “we have to warmth helium to 31–32 °C to get a traditional 21–22 °C inner temperature surroundings,” says Rick Goddard, director of engineering at Deep. “This creates a moist ambiance, so porous supplies grow to be a breeding floor for mildew”.
There are a number of different materials-related challenges, too. The supplies can’t emit gases, and so they should be acoustically insulating, light-weight, and structurally sound at excessive pressures.
Deep’s proving grounds are a former quarry in Tidenham, England, that has a most depth of 80 meters. Deep
There are additionally many electrical challenges. “Helium breaks sure electrical elements with a excessive diploma of certainty,” says Goddard. “We’ve needed to pull units to items, change chips, change [printed circuit boards], and even design our personal PCBs that don’t off-gas.”
{The electrical} system can even should accommodate an power combine with such assorted sources as floating photo voltaic farms and gas cells on a floor buoy. Power-storage units current main electrical engineering challenges: Helium seeps into capacitors and might destroy them when it tries to flee throughout decompression. Batteries, too, develop issues at excessive strain, so that they should be housed outdoors the habitat in 1-atmosphere strain vessels or in oil-filled blocks that stop a differential strain inside.
Is it Doable to Reside within the Ocean for Months or Years?
If you’re attempting to be the SpaceX of the ocean, questions are naturally going to fly concerning the feasibility of such an ambition. How possible is it that Deep can comply with by means of? A minimum of one prime authority, John Clarke, is a believer. “I’ve been astounded by the standard of the engineering strategies and experience utilized to the issues at hand and I’m keen about how DEEP is making use of new know-how,” says Clarke, who was lead scientist of the U.S. Navy
Experimental Diving Unit. “They’re advancing properly past expectations…. I gladly endorse Deep of their quest to develop humankind’s embrace of the ocean.”
