One of many best climate-related engineering challenges proper now’s the design and building of a giant, zero-emission, passenger airliner. And on this huge enterprise, no airplane maker is as invested as Airbus.
On the Airbus Summit, a symposium for journalists on 24 and 25 March, prime executives sketched out a daring, tech-forward imaginative and prescient for the corporate’s subsequent couple of generations of aircraft. The spotlight, from a tech perspective, is a superconducting, fuel-cell powered airliner.
Airbus’s technique is predicated on parallel growth efforts. Whereas enterprise the large R&D initiatives wanted to create the massive, fuel-cell plane, the corporate mentioned it’ll additionally work aggressively on an airliner designed to wring probably the most potential effectivity out of combustion-based propulsion. For this airplane, the corporate is concentrating on a 20-to-30 p.c discount in gas consumption, based on Bruno Fichefeux, head of future programmes at Airbus. The airplane can be a single-aisle airliner, designed to succeed Airbus’s A320 family of plane, the highest-selling passenger jet plane available on the market, with nearly 12,000 delivered. The corporate expects the brand new airplane to enter service a while within the latter half of the 2030s.
Airbus hopes to realize such a big effectivity acquire by exploiting rising advances in jet engines, wings, light-weight, high-strength composite supplies, and sustainable aviation fuel. For instance, Airbus disclosed that it’s now engaged on a pair of superior jet engines, the extra radical of which might have an open fan whose blades would spin and not using a surrounding nacelle. Airbus is evaluating such an engine in a undertaking with companion CFM International, a three way partnership between GE Aerospace and Safran Aircraft Engines.
With no nacelle to surround them, an engine’s fan blades may be very massive, allowing greater ranges of “bypass air,” which is the air sucked in to the again of the engine—separate from the air used to combust gas—and expelled to supply thrust. The ratio of bypass air to combustion air is a crucial measure of engine efficiency, with greater ratios indicating greater efficiencies, based on Mohamed Ali, chief know-how and working officer for GE Aerospace. Typical bypass ratios right this moment are round 11 or 12, however the open-fan design might allow ratios as excessive as 60, based on Ali.
The companions have already examined open-fan engines in two completely different collection of wind-tunnel assessments in Europe, Ali added. “The outcomes have been extraordinarily encouraging, not solely as a result of they’re actually good when it comes to efficiency and noise validation, but additionally [because] they’re validating the computational evaluation that we’ve got completed,” Ali mentioned on the Airbus occasion.
A scale mannequin of an open-fan plane engine was examined final yr in a wind tunnel in Modane, France. The assessments have been performed by France’s nationwide aerospace analysis company and Safran Plane Engines, which is engaged on open-fan engines with GE Aerospace.Safran Plane Engines
Gasoline-cell airliner is a cornerstone of zero-emission objectives
In parallel with this superior combustion-powered airliner, Airbus has been creating a fuel-cell plane for 5 years beneath a program known as ZEROe. On the Summit, Airbus CEO Guillaume Faury backed off of a objective to fly such a airplane by 2035, citing the shortage of a regulatory framework for certifying such an plane in addition to the sluggish tempo of the build-out of infrastructure wanted to supply “green” hydrogen at business scale and at aggressive costs. “We might have the danger of a form of ‘Harmony of hydrogen’ the place we might have an answer, however that might not be a commercially viable answer at scale,” Faury defined.
That mentioned, he took pains to reaffirm the corporate’s dedication to the undertaking. “We proceed to imagine in hydrogen,” he declared. “We’re completely satisfied that that is an vitality for the long run for aviation, however there’s simply extra work to be completed. Extra work for Airbus, and extra work for the others round us to carry that vitality to one thing that’s at scale, that’s aggressive, and that may result in successful, making a major contribution to decarbonization.” Lots of the world’s main industries, together with aviation, have pledged to realize zero net greenhouse gas emissions by the yr 2050, a incontrovertible fact that Faury and different Airbus officers repeatedly invoked as a key driver of the ZEROe undertaking.

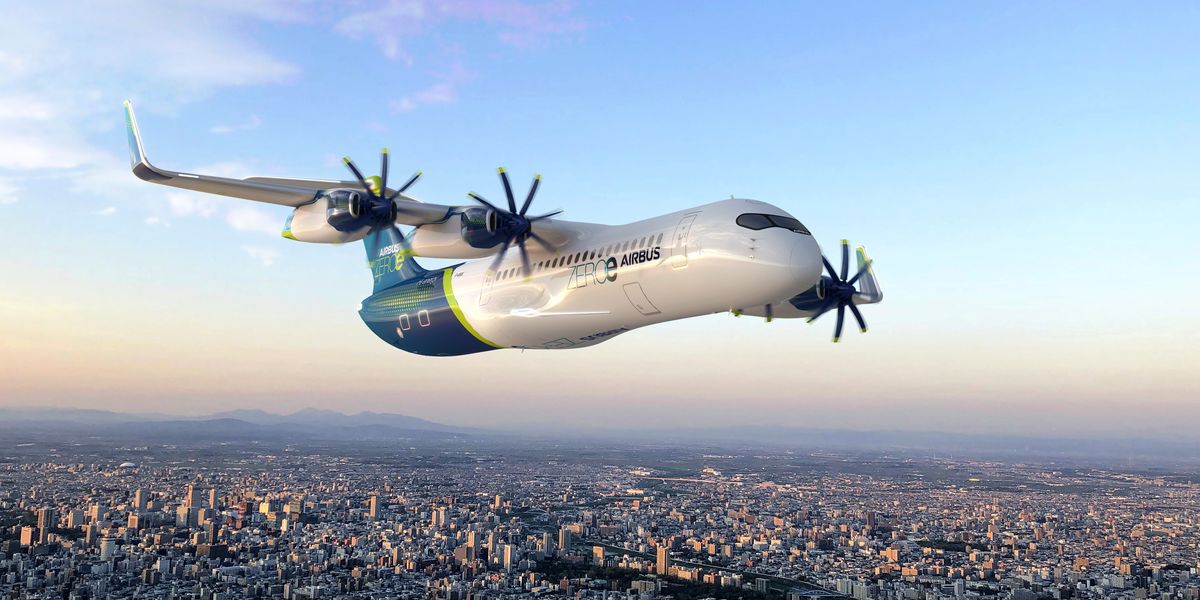

Later within the occasion, Glenn Llewellyn, Airbus’s vice chairman in command of the ZEROe program, described the undertaking intimately, indicating an effort of breathtaking technological ambition. The envisioned plane would seat a minimum of 100 folks and have a spread of 1000 nautical miles (1850 kilometers). It might be powered by 4 fuel-cell “engines” (two on every wing), every with an influence output of two megawatts.
In response to Hauke Luedders, head of gas cell propulsion systems development at Airbus, the corporate has already completed intensive assessments in Munich on a 1.2 MW system constructed with companions together with Liebherr Group, ElringKlinger, Magna Steyr, and Diehl. Luedders mentioned the corporate is specializing in low-temperature proton-exchange-membrane fuel cells, though it has not but settled on the know-how.
However the true stunner was Llewellyn’s description of a complete program at Airbus to design and take a look at an entire superconducting electrical powertrain for the fuel-cell plane. “Because the hydrogen saved on the plane is saved at a really chilly temperature, minus 253 levels Celsius, we will use this temperature and the cryogenic know-how to additionally effectively settle down the electrics within the full system,” Llewellyn defined. “It considerably improves the energy efficiency and the efficiency. And even when that is an early know-how, with the proper efforts and the proper partnerships, this may very well be a sport changer for our fuel-cell plane, for our totally electric aircraft, enabling us to design bigger, extra highly effective, and extra environment friendly plane.”
In response to a query from IEEE Spectrum, Llewellyn elaborated that all the main elements of the electric propulsion system can be cryo-cooled: “electrical distribution system, digital controls, power converters, and the motors”—particularly, the coils within the motors. “We’re working with companions on each single element,” he added. The cryo-cooling system would chill a refrigerant that might flow into to maintain the elements chilly, he defined.
A gas cell plane “engine,” as envisioned by Airbus, would come with a 2-megawatt electric motor and related motor management unit (MCU), a fuel-cell system to energy the motor, and related techniques for supplying air, hydrogen fuel, liquid refrigerant, and different requirements. The ram air system would seize chilly air flowing over the plane to be used within the cooling techniques.Airbus SAS
Might aviation be the killer app for superconductors?
Llewellyn didn’t specify which superconductors and refrigerants the group was working with. However high temperature superconductors are an excellent guess, due to the drastically decreased necessities on the cooling system that might be wanted to maintain superconductivity.
Copper-oxide based mostly ceramic superconductors have been invented at IBM in 1986, and varied types of them can superconduct at temperatures between –238 °C (35 Ok) and –140 °C (133 Ok) at ambient strain. These temperatures are greater than conventional superconductors, which want temperatures under about 25 Ok. However, business functions for the high-temperature superconductors have been elusive.
However a superconductivity knowledgeable, utilized physicist Yu He at Yale College, was heartened by the information from Airbus. “My first response was, ‘actually?’ And my second response was, wow, this entire line of analysis, or software, is certainly rising and I’m very delighted” about Airbus’s bold plans.
Copper-oxide superconductors have been utilized in a couple of functions, nearly all of them experimental. These included wind-turbine mills, magnetic-levitation prepare demonstrations, quick electrical transmission cables, magnetic-resonance imaging machines and, notably, within the electromagnet coils for experimental tokamak fusion reactors.
The tokamak software, at a fusion startup known as Commonwealth Fusion Systems, is especially related as a result of to make coils, engineers needed to invent a course of for turning the usually brittle copper-oxide superconducting materials into a tape that may very well be used to kind donut-shaped coils able to sustaining very excessive present movement and subsequently very intense magnetic fields.
“Having a superconductor to supply such a big present is fascinating as a result of it doesn’t generate warmth,” says He. “Which means, first, you’ve a lot much less vitality misplaced instantly from the coils themselves. And, second, you don’t require as a lot cooling energy to take away the warmth.”
Nonetheless, the technical hurdles are substantial. “One can argue that contained in the motor, intense warmth will nonetheless must be eliminated attributable to aerodynamic friction,” He says. “Then it turns into, how do you handle the general warmth inside the motor?”
An engineer at Air Liquide Superior Applied sciences works on a take a look at of a hydrogen storage and distribution system on the Liquid Hydrogen Breadboard in November, 2024. The “Breadboard” was established final yr in Grenoble, France, by Air Liquide and Airbus.Céline Sadonnet/Grasp Movies
For this problem, engineers will a minimum of have a positive setting with chilly, fast-flowing air. Engineers will have the ability to faucet into the “huge air movement” over the motors and different elements to help the cooling, He suggests. Good design might “reap the benefits of this kinetic energy of flowing air.”
To check the evolving fuel-cell propulsion system, Airbus has constructed a singular take a look at middle in Grenoble known as the “Liquid Hydrogen Breadboard,” Llewellyn disclosed on the Summit. “We partnered with Air Liquide Advanced Technologies” to construct the ability, he mentioned. “This Breadboard is a flexible take a look at platform designed to simulate key components of future plane structure: tanks, valves, pipes, and pumps, permitting us to validate completely different configurations at full scale. And this take a look at facility helps us acquire essential perception into security, hydrogen operations, tank design, refueling, venting, and gauging.”
“All through 2025, we’re going to proceed testing the entire liquid-hydrogen and distribution system,” Llewellyn added. “And by 2027, our goal is to take a good additional main step ahead, testing the entire end-to-end system, together with the fuel-cell engine and the liquid hydrogen storage and distribution system collectively, which is able to permit us to evaluate the complete system in motion.”
Glenn Zorpette traveled to Toulouse as a visitor of Airbus.
