Most haptic interfaces at present are restricted to easy vibrations. Whereas visible shows and audio methods have continued to progress, these utilizing our sense of contact have largely stagnated. Now, researchers have developed a haptics system that creates extra complicated tactile feedback. Past simply buzzing, the gadget simulates sensations like pinching, stretching, and tapping for a extra life like expertise.
“The feeling of contact is probably the most private connection that you could have with one other particular person,” says John Rogers, a professor at Northwestern University in Evanston, Illinois, who led the challenge. “It’s actually vital, nevertheless it’s rather more troublesome than audio or video.”
Co-led by Rogers and Yonggang Huang, additionally a professor at Northwestern, the work is basically geared towards medical functions. However the expertise could possibly be utilized in a variety of functions, together with virtual or augmented reality and feeling the feel of clothes cloth or different objects whereas purchasing on-line. The analysis was published within the journal Science on 27 March.
A Nuanced Sense of Contact
Right now’s haptic interfaces principally depend on vibrating actuators, that are pretty easy to assemble. “It’s an excellent place to begin,” says Rogers. However going past vibration may assist add the vibrancy of real-world interactions to the expertise, he provides.
These kind of interactions require extra refined mechanical forces, which embrace a mixture of each regular forces directed perpendicular to the pores and skin’s floor and shear forces directed parallel. Whether or not by vibration or making use of strain, forces directed vertically into the pores and skin have been the primary focus of haptic designs, in accordance with Rogers. However these don’t absolutely interact the numerous receptors embedded in our pores and skin.
The researchers aimed to construct an actuator that provides full freedom of movement, which they achieved with “very previous physics,” Rogers says—specifically, electromagnetism. The fundamental design of the gadget consists of three nested copper coils and a small magnet. Working present by the coils generates a magnetic discipline that then strikes the magnet, which delivers drive to the pores and skin.
“What we’ve put collectively is an engineering embodiment [of the physics] that gives a really compact drive supply system and affords full programmability in path, amplitude, and temporal traits,” says Rogers. For a extra elaborate setup, the researchers additionally developed a model that makes use of a set of 4 magnets with totally different orientations of north and south poles. This creates much more complicated sensations of pinching, stretching, and twisting.
Haptics at Your Fingertips—Or Anyplace

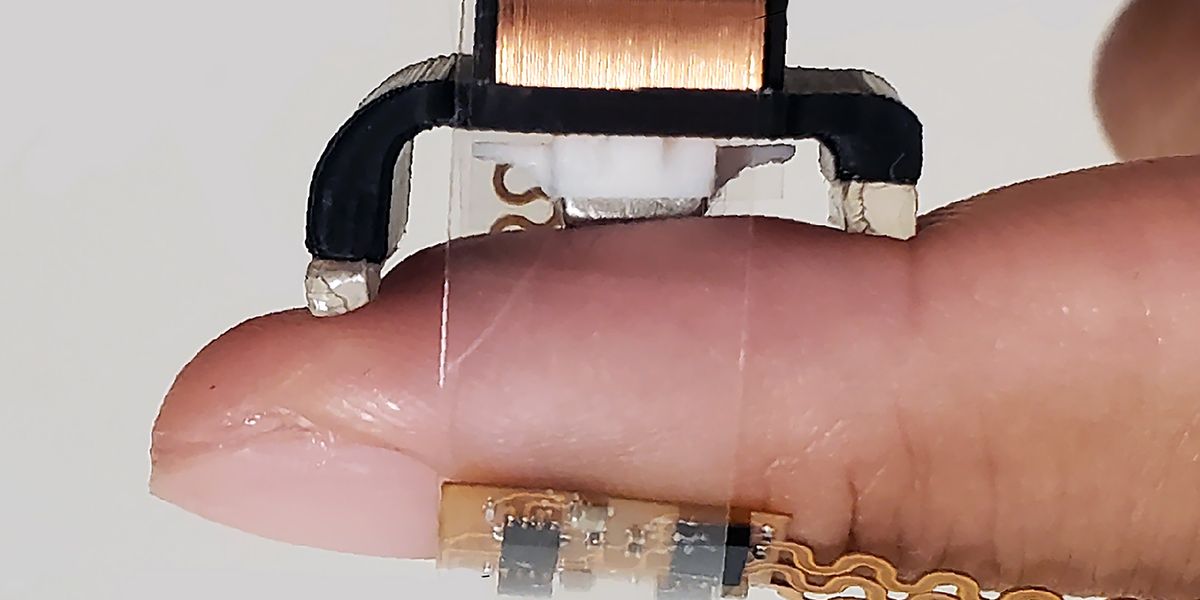

As a result of fingertips are extremely delicate, solely small forces are wanted for this software. John A. Rogers/Northwestern College
Though a lot of the earlier work in haptics has targeted on fingertips and the arms, these units could possibly be positioned elsewhere on the physique, together with the again, chest, or arms. Nonetheless, these functions could have totally different necessities. In comparison with locations just like the again, the fingertips are extremely delicate—each when it comes to the drive wanted and the spatial density of receptors.
“The fingertips are in all probability probably the most difficult when it comes to density, however they’re best when it comes to the forces that you want to ship,” says Rogers. In different use circumstances, delivering sufficient energy could also be a problem, he acknowledges.
The drive doable can also be restricted by the dimensions of the coils, says Gregory Gerling, a systems engineering professor on the College of Virginia and former chair of the IEEE Technical Committee on Haptics. The coil dimension dictates how a lot drive you possibly can generate, and at a sure level, the gadget received’t be wearable. Nonetheless, he believes it’s enough for VR functions.
Gerling, an IEEE senior member, finds using magnetism in a number of instructions fascinating. In comparison with different approaches which are based mostly on hydraulics or air strain, this method doesn’t require pumping fluids or gasses. “You might be sort of untethered,” Gerling says. “Total, it’s a really fascinating, novel gadget, and possibly it takes the sector in a barely new path.”
Purposes in VR, Neuropathy, and Extra
The clearest software of the gadget might be in digital or augmented reality, says Rogers. These environments now have extremely refined audio and video inputs, “however the tactile part of that have remains to be a piece in progress,” he says.
Their lab, nonetheless, is primarily targeted on medical functions, together with sensory substitution for sufferers who’ve misplaced sensation in part of the physique. A posh haptics interface may reproduce the feeling in one other a part of the physique.
For instance, nerve harm in folks with diabetic neuropathy makes it troublesome for them to stroll with out their toes. The lab is experimenting with inserting an array of pressure sensors into the bottom of those sufferers’ sneakers, then reproducing the sample of strain utilizing a haptic array mounted on their higher thighs, the place they nonetheless have sensation. The researchers are working with a rehabilitation facility in Chicago to check the strategy, primarily with this inhabitants.
Persevering with to develop these medical functions might be a spotlight transferring ahead, says Rogers. When it comes to engineering, he want to additional miniaturize the actuators to make dense arrays doable in areas of the physique just like the fingertips.
Feeling the Music
Moreover, the researchers explored the potential for utilizing the gadget to extend engagement in musical performances. Aside from maybe feeling vibrations of the bass line, performances often depend on sight and sound. Including a tactile ingredient may make for a extra immersive expertise, or assist folks with hearing impairment interact with the music.
With the present tech, primary vibrating actuators can change the frequency of vibration to match the notes being performed. Whereas this could convey a easy melody, it lacks the richness of various devices and musical parts.
The researchers’ full freedom of movement actuator can convey a extra vibrant sound. Voice, guitar, and drums, as an illustration, can every be transformed into a specific drive supply mechanism. Like with vibration alone, the frequency of every drive might be modulated to match the music. The experiment was exploratory, Rogers says, however exploits the superior capabilities of the system.
